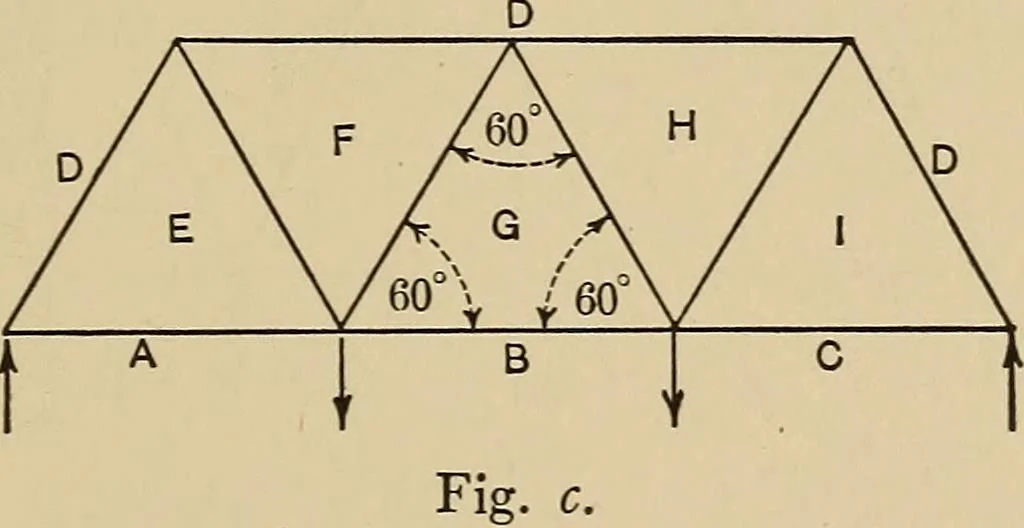

of the load. Any deviation from this dis-tribution will cause the frame to change its shape. A deficientframe may generally be made complete by the addition of anothermember. PROBLEMS I. Draw the reciprocal diagram of the Warren girder of Fig. c, thetriangles being equilateral. Span, 42 feet, and a… … 2. Draw the reciprocal diagram of the roof truss of Fig. d, which isloaded as shown. Tabulate the stresses and indicate their kinds in theframe diagram. Scales: Load, 0.25 inch = i ton; linear, 0.1 inch = ifoot. i8o THE ELEMENTS OF MECHANICS OF MATERIALS 3 tons 4 tons
