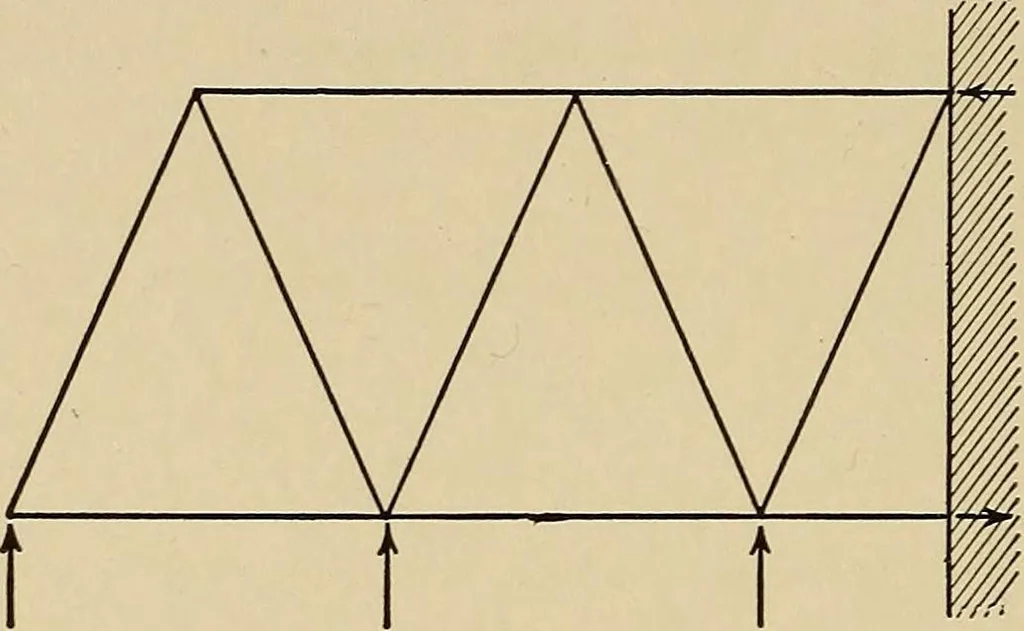

s and indicatetheir kinds in the frame diagram. Scale: Linear, ^ inch = i foot. A B CD ^>^. 1 / \ s L -^^ ^ ^ < J K >^ V Fig. e. 4. The braced cantilever of Fig. / is 20 feet long, 9 feet deep, and uni-formly loaded on the top with 120 pounds per foot. Draw the reciprocaldiagram to the… … Fig. /. 5. Draw the reciprocal diagram of the braced cantilever of Fig. g, andtabulate the stresses. Find, in magnitude and direction, the resultantstress on the pin of the upper joint at the wall. Scales: Load, o.i inch= 80 pounds; linear, 0.25 inch = i foot. FRAMED STRUCTURES — RECIPROCAL DIAGRAM…
