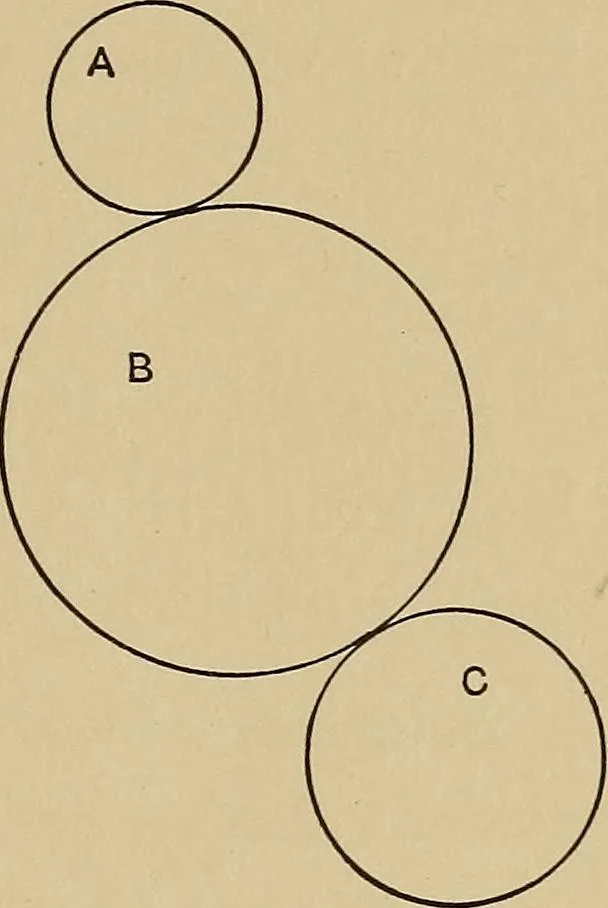

^ Fig. II. to iDe cut will be finer or coarser thanthat on the lead screw in the exact proportion that the revolu-tions of the lathe spindle in a unit of time are greater or lessthan those of the lead screw. The driving wheel A is fast on the lathe spindle, or so con-nected with it as to make the… … 246 THE ELEMENTS OF POWER TRANSMISSION direction and also of filling in the space between A and C, theaxis of B being adjustable in a slotted arm. The lead screw of the lathe works in a nut on the lathe carriagewhich carries the cutting tool, so that for each revolution ofthe wheel C the cutting…
