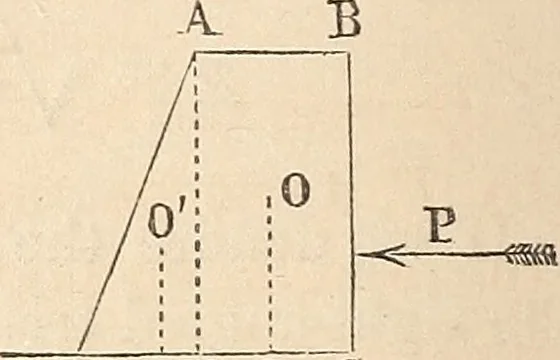

of the wall be equal to whVx. The force --=- acts with an arm of lever ti to overturn the2h wall about its lower and outer edge ; this force is resisted bythe weight w + wtilx, acting through the centre of gravityof the wall with a lever arm equal to \x. If there is anequilibrium, the moments of… … 7. A sustaining wall has a cross section in the form of atrapezoid, the face upon which thepressure is thrown being vertical, andthe opposite face having a slope ofsix perpendicular to one horizontal.Required the least thickness that mustbe given to the wall at the top, thatit may not be overturned…
