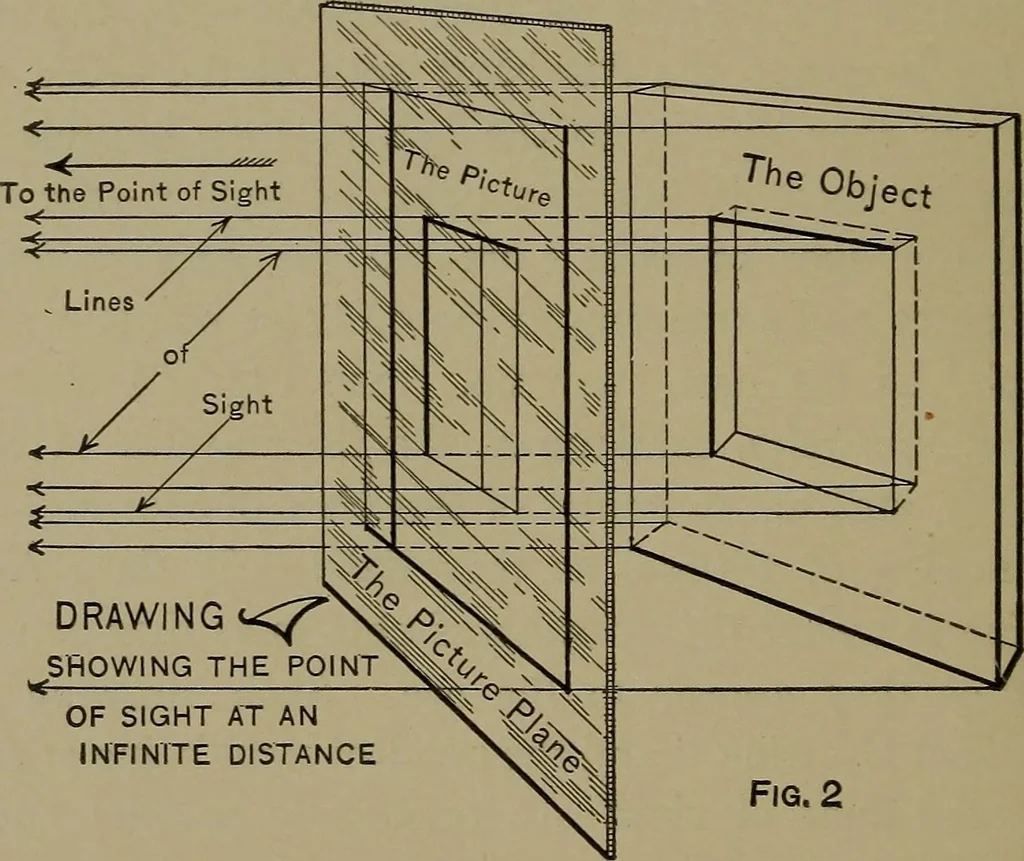

DRAWING ^T SHOWING THE POINT OF 5IGHT AT A FINITE DISTANCE X V% buildings, etc., are examples of this class of drawing, and this isthe kind of drawing with which engineers are concerned. … DRAWING K^ SHOWING THE POI OF SIGHT AT ANINFINITE DISTANCE Fig. 2 Mechanical Drawing may, in turn, be divided into twogeneral classes: (1) detail drawing and (2) assembled drawing. ELEMENTARY PRINCIPLES AND DEFINITIONS. 4. Detail Drawing.—To detail means to separate, to tellin detail; detail…
