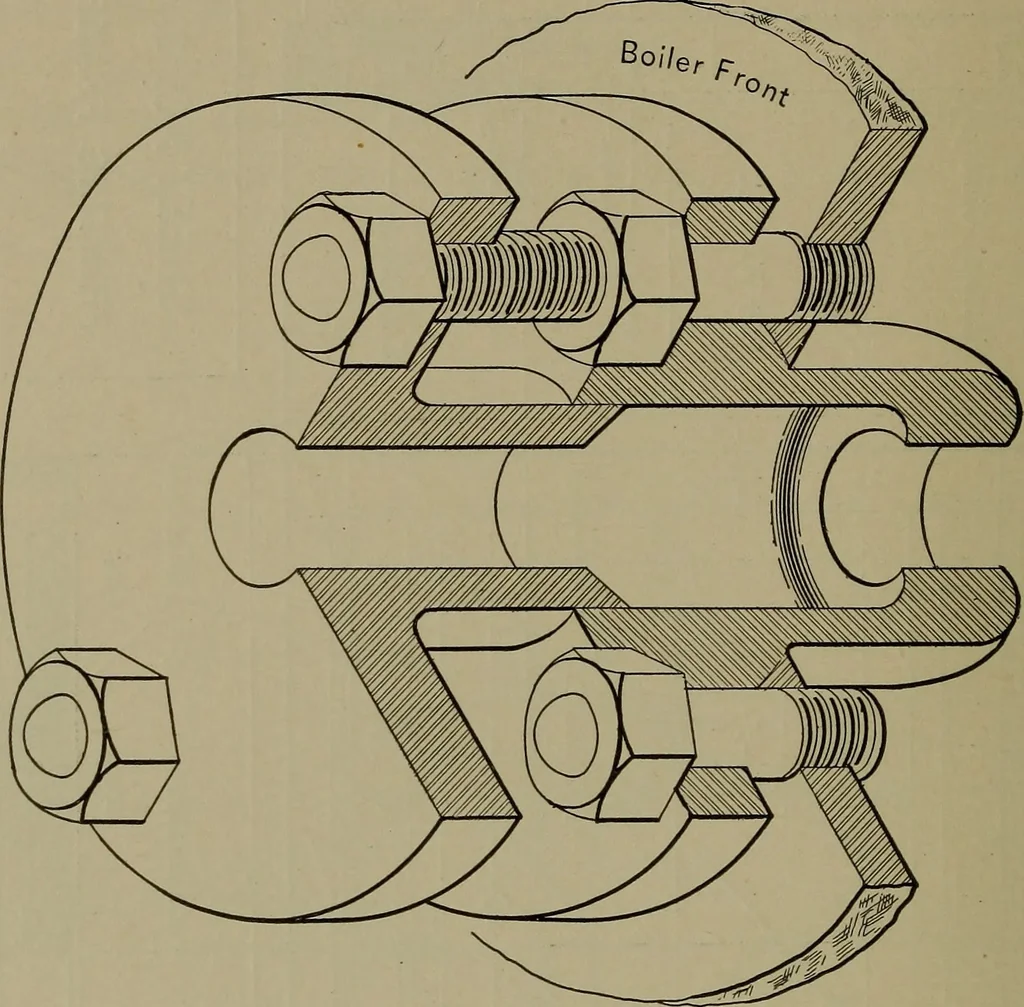

I92 MECHANICAL DRAWING. 203. Sheet No. 11, Plate No. 37.—This plate presents aworking drawing of a locomotive throttle stuffing-box. To drawthe sheet, locate the center lines, construct the front-elevation … THE BOXFig. 76. drawing first (the figure on the left of the plate), then project theside elevation. The scale is to be one-half size. 204. Sheet No. 12, Plate No. 38.—This exercise is an example Threaded for tumbuckle
Mechanical drawing
