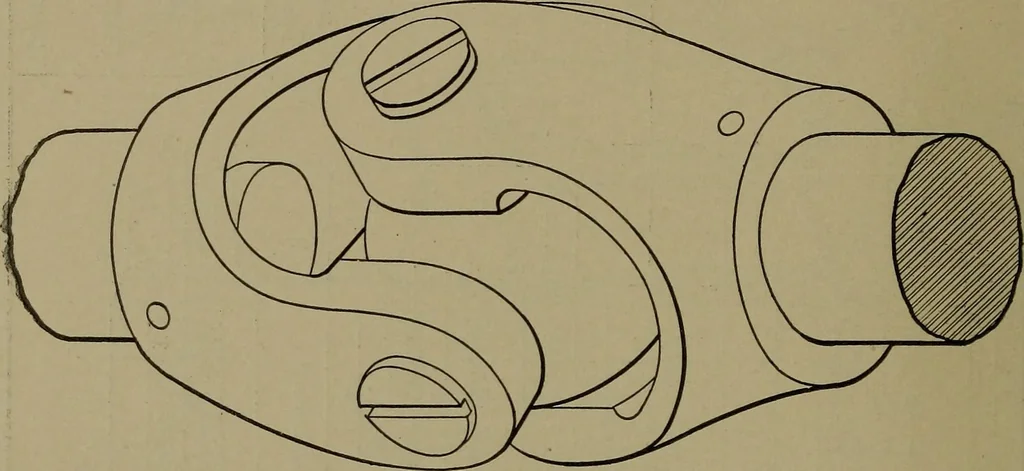

in < z r ^8-f -1 200 MECHANICAL DRAWING. The cross-hatched portions of the top row of figures illus-trate the fit of the bearings and the use of the pin which keepsthem (the bearings) from turning. 208. Sheet No. 16, Plate No. 42.—This sheet is an exercisein free-hand lettering. The student is… … THE JOINT Fig. 81 of a universal joint. Construct a full-size drawing and shadethe end view. 210. Sheet No. 18, Plate No. 44.—This sheet introduces athird problem in drawing. The sheet is to be drawn to a scaleof 3 = i, and in the two elevations show a half section taken onthe line A-B-C of the…
