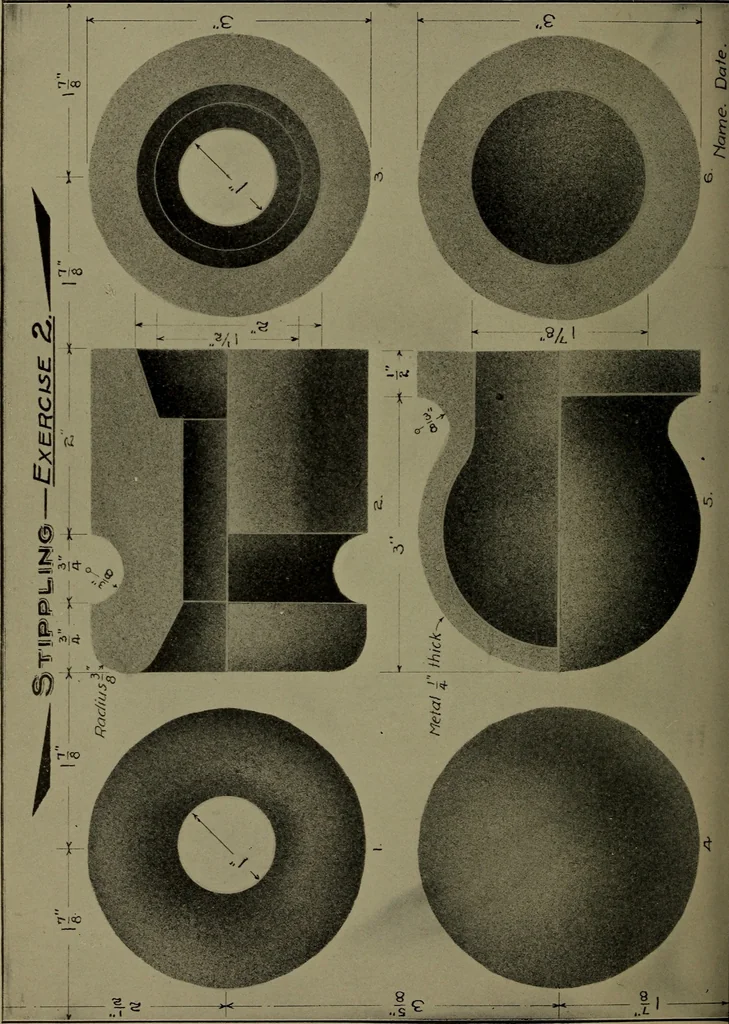

224 MECHANICAL DRAWING. PLATE No. 57. … MECHANICAL EXECUTION OF DRAWINGS. 225 224. Sheets Nos. 32 to 36, Inclusive.—These are to be pen-and-ink scale drawings of the working sketches of the work in sketch-ing, constituting what will be termed shop drawings—draw-ings for shop purposes. These drawings are to be prepared inpencil on paper,…
