Jamison, Alpha Pierce. [from old catalog] · New York, J. Wiley & sons; · leaf 77

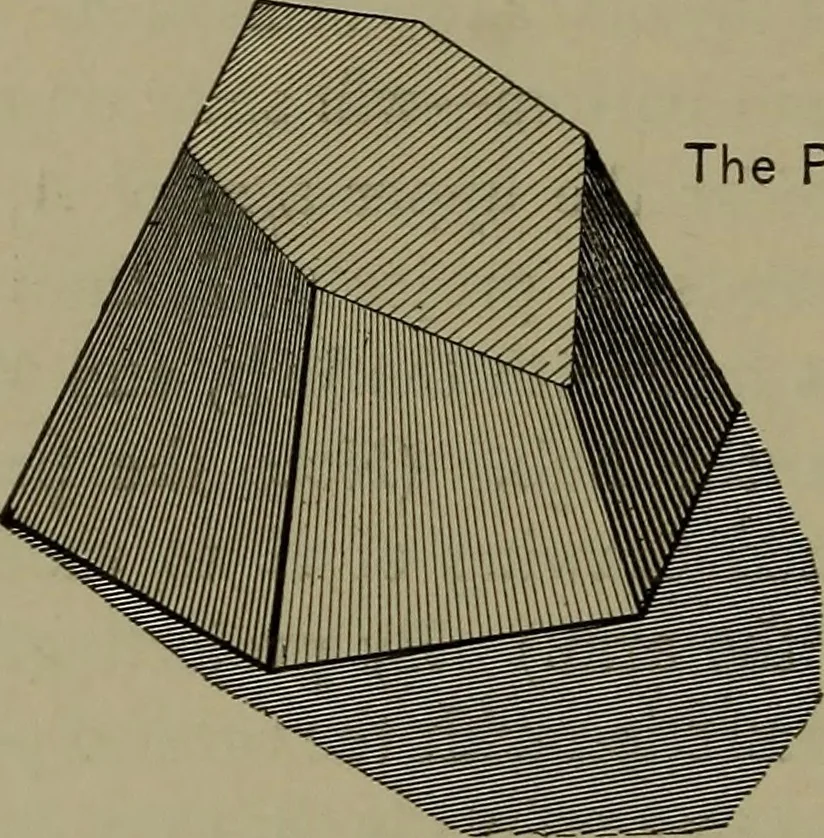

ectedseparately, the circles being projected as explained. 78. Problem 4.—Projections of a Frustum of a HexagonalRight Pyramid and its Development. — Let the pyramid beassumed as resting on the horizontal plane, and let its position 5* MECHANICAL DRAWING. with reference to the vertical plane be… … Pyramid. Fig. 21. frustum not, as yet, entering into the problem. The draw-ings are constructed in the order numbered, that the edges of 2may be projected from 1. Now that the pyramid is fixed, let
Mechanical drawing
