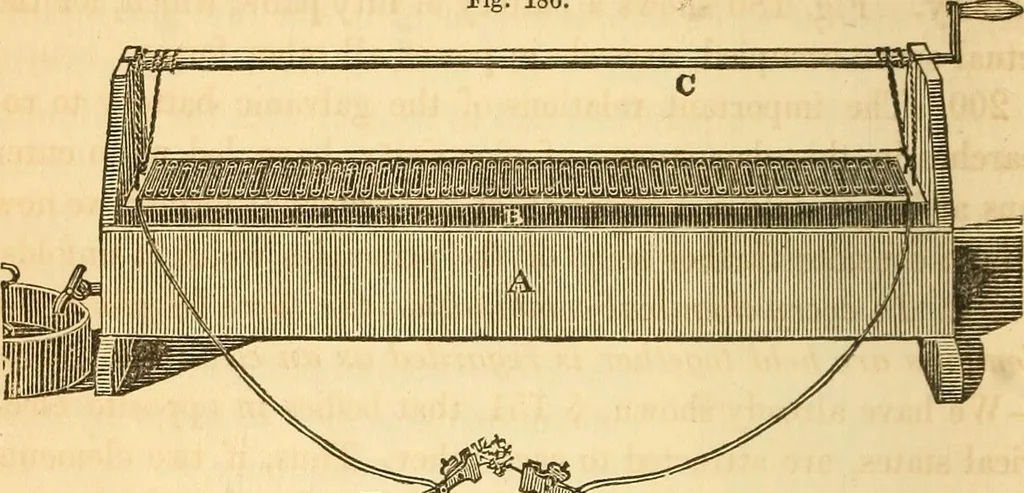

22G TROUGH BATTERY. lioweverj a decided advantage over that, in the fact that thewhole series maj be lifted at once from the cells, when desired,and further action thus checked. Fig. 186 shows a modern and far superior arrangement of theTrough Battery. In this form the zinc plates are inclosed… … The whole series is also confined in a wood case, B, whichmay be raised or lowered into the trough, A, containing the acid,by means of the windlass, C. E E are small hand-vices con-nected with the poles for holding wires, bits of charcoal, etc.,for deflagration. The exciting liquid is sulphuric…
