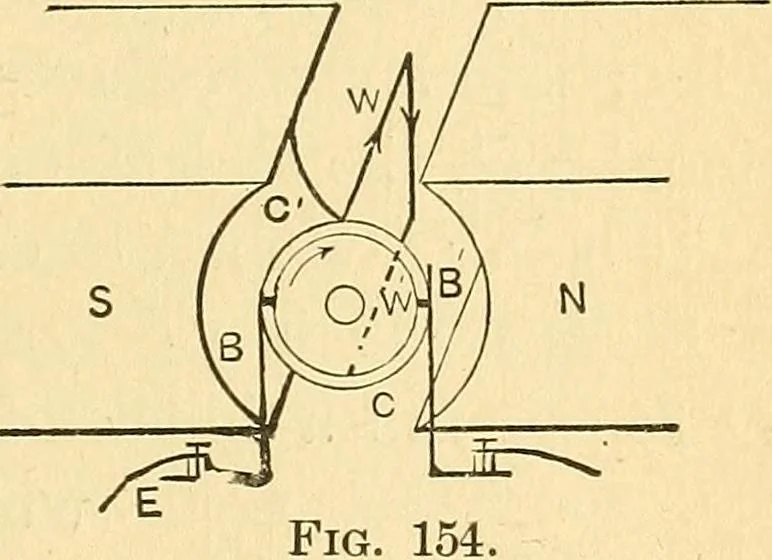

part of a complete circuit. As halfof the coil TF moves away from aS, and toward iV, a currentis induced in one direction, as shown by the arrow ; while,at the same time, the other half is moving toward S andaivay from iV, and thus has a current induced in the op-posite direction. As the parts… … ELECTRICITY [§398 in the opposite direction. The latter current will pass acrossthe end and follow or unite with the current generated in theother part of the coil, flow to 0 out on the brush ^, throughthe external circuit E, and back through the brush B, The copper plates O and C form what is…
