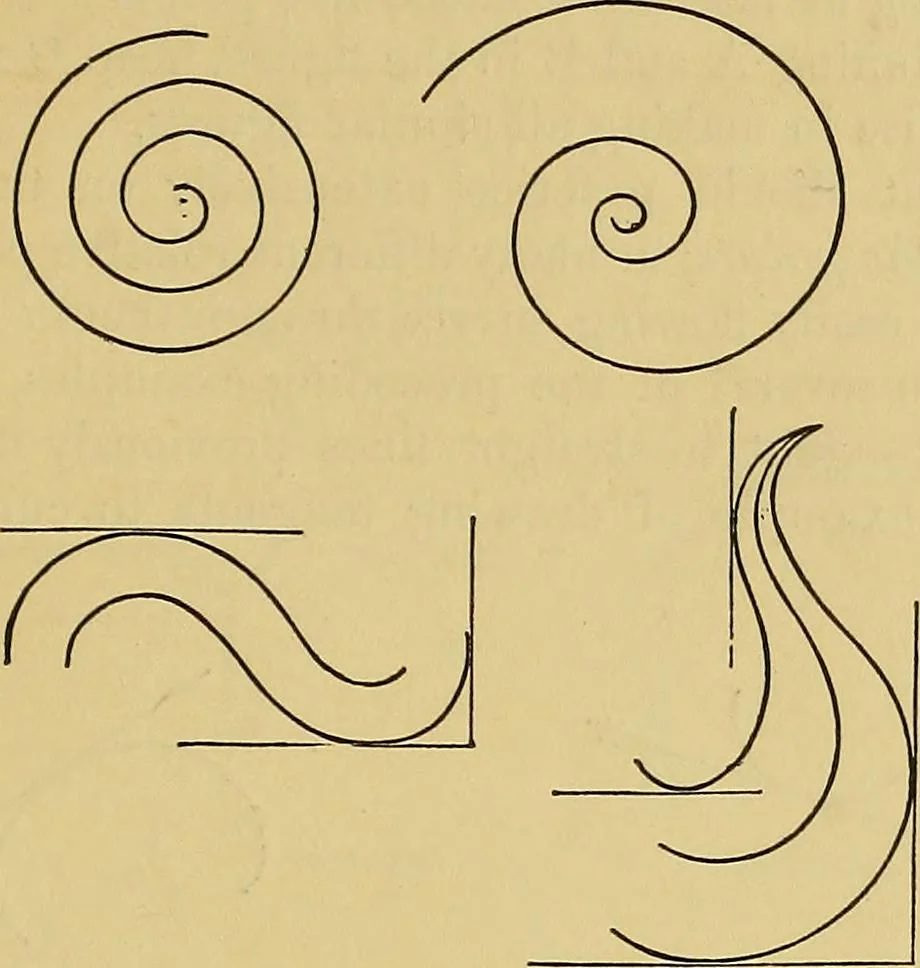

traight in the mid-dle, and sharply curved at the ends, while its left-hand halfis convex upwards, and its right-hand half equally so down-wards ; and each with a vertical tangent at its extremities. Of the two spirals, it will be seen that one increases its radiusuniformly, giving equal radial… … Ex. 113. An exercise of peculiar utility, is found in sketchingeasy curves through several given scattered points. This opera-tion frequently occurs in geometrical drawing, when other than
