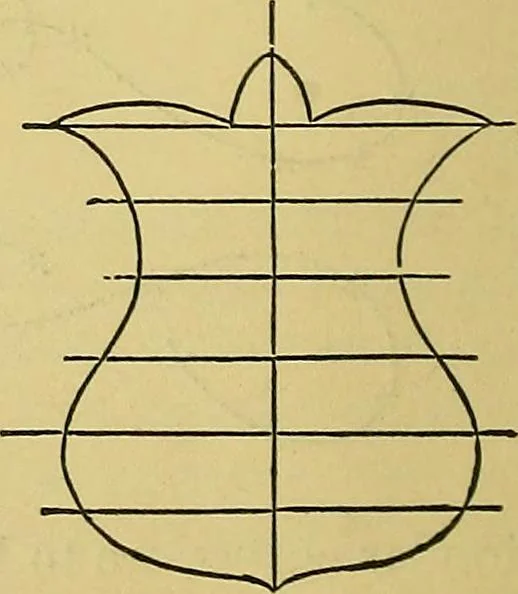

is, tomake the other side of exactly the same form, but in a reversedposition. This can be done, as in thefigure, by drawing lines perpendicularto the centre line, and by marking onthem equal distances on eacli side ofthe centre line. The following areother examples of symmetrical figures,some of… … CURVES AND CURVED OBJECTS IN GENERAL. 45
