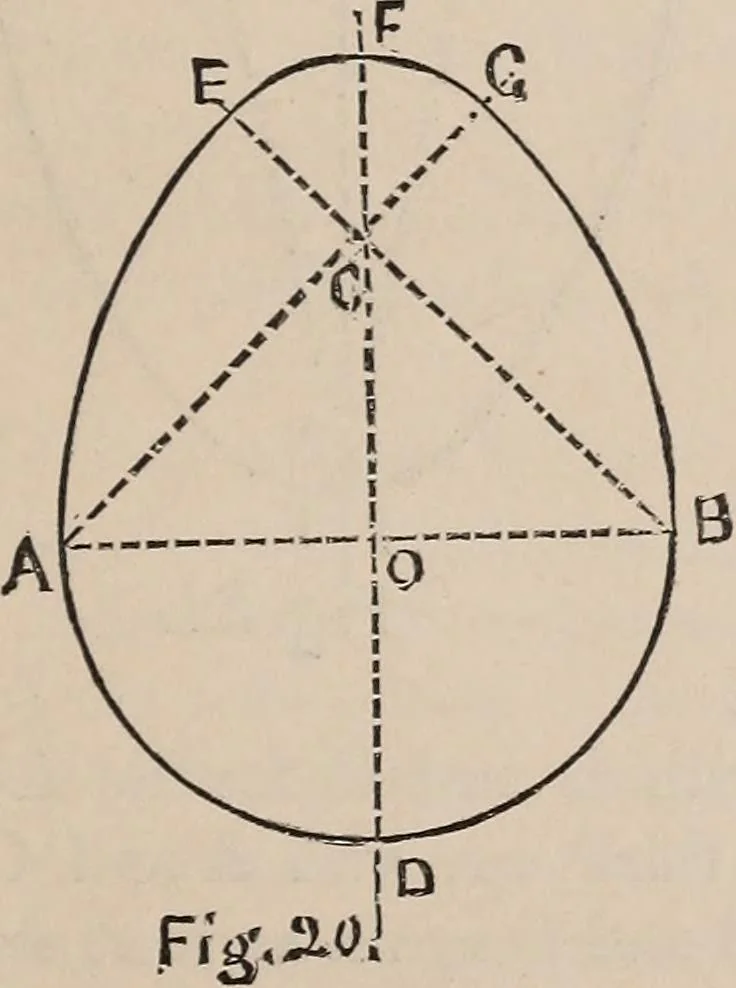

great beauty. But in turning fromNature to Geometry, we find no mention made of egg-formedcurves in ordinary treatises, while in the more extended workson the higher curves, we find them occasionally as detachedportions of curves having a complex law of construction, andwhich consist of two or more… … arcs, as in Fig. 20, where A D B is a semi-circle ; A E and B Gl-are arcs described from B and A, respectively as centres, C theintersection of their radii, being the centre of the arc E F G. 74. Hays composite ellipse.—Still, it is desirable, both forthe sake of conformity to Nature, and of…
