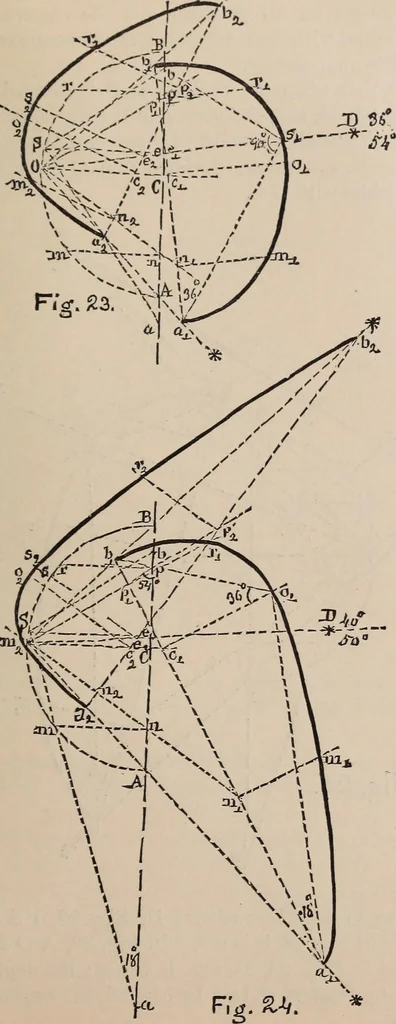

o of the angles, a and b, of the trans-formed triangle a Ob, either the same as, or different from thatof the two angles into which A O B is divided. 3°. By making the transformed triangle aOb(oraS b—seeArt. 79) right angled, or not, at O. 79. Illustrations. Of Figs. 23 to 30, inclusive, each ill… … 116 FREE-HAND GEOMETRICAL DRAWING. trates one or more of these variations. Similar points havingthe same letters on all of them, and the construction of allbeing the same, with one exception, next mentioned, repeateddescription is unnecessary. But note, that when the angle A O B is divided…
