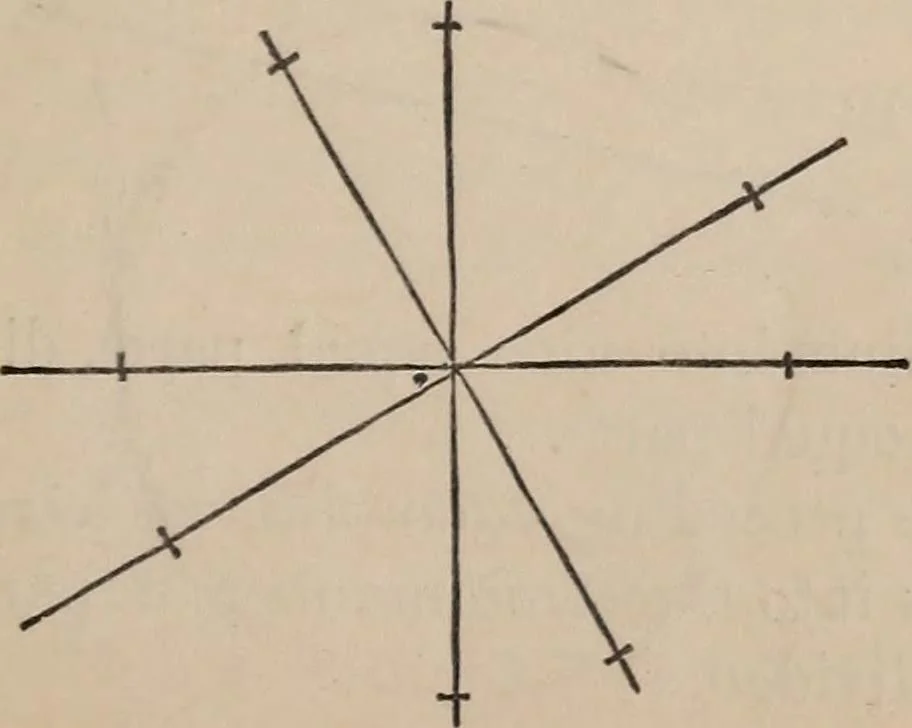

Ex. 45. Draw lines in several directions through the samepoint, and mark equal distances from the point on all of them;thus: … 14 FREE-HAND GEOMETRICAL DRAWING. Division of Lines into Equal Parts. Ex. 46. Divide lines in various positions, as shown below, intctwo equal parts. This is done by marking the middle point ofthe line, and is called bisecting the line. Then apply the papermeasure, and see if the two parts are…
