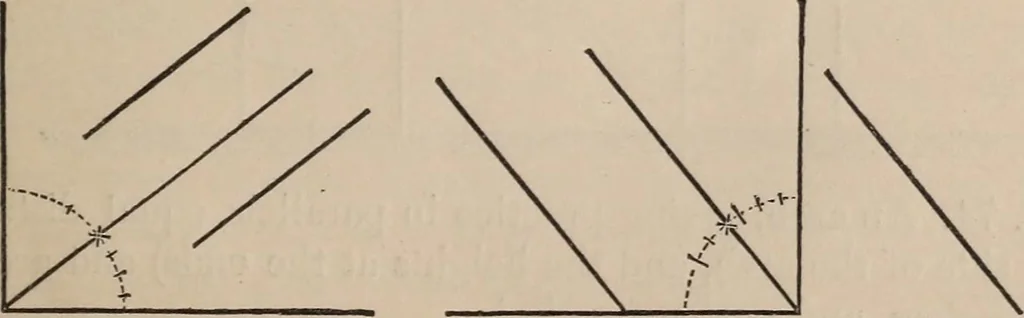

Ex. 70. Divide a right angle into two parts, one of 40° theother of 50°. This can be most easily done by finding one-thirdof the right angle, and making the angle and arc of 40°, one-thirdgreater than the one of 30°, thus : … Ex. 71. Repeat the divisions of the right angle, given in the 26 FREE-HAND GEOMETRICAL DRAWING. preceding examples, upon right angles in various oblique positions as in Ex, 36. Practical Examples.
