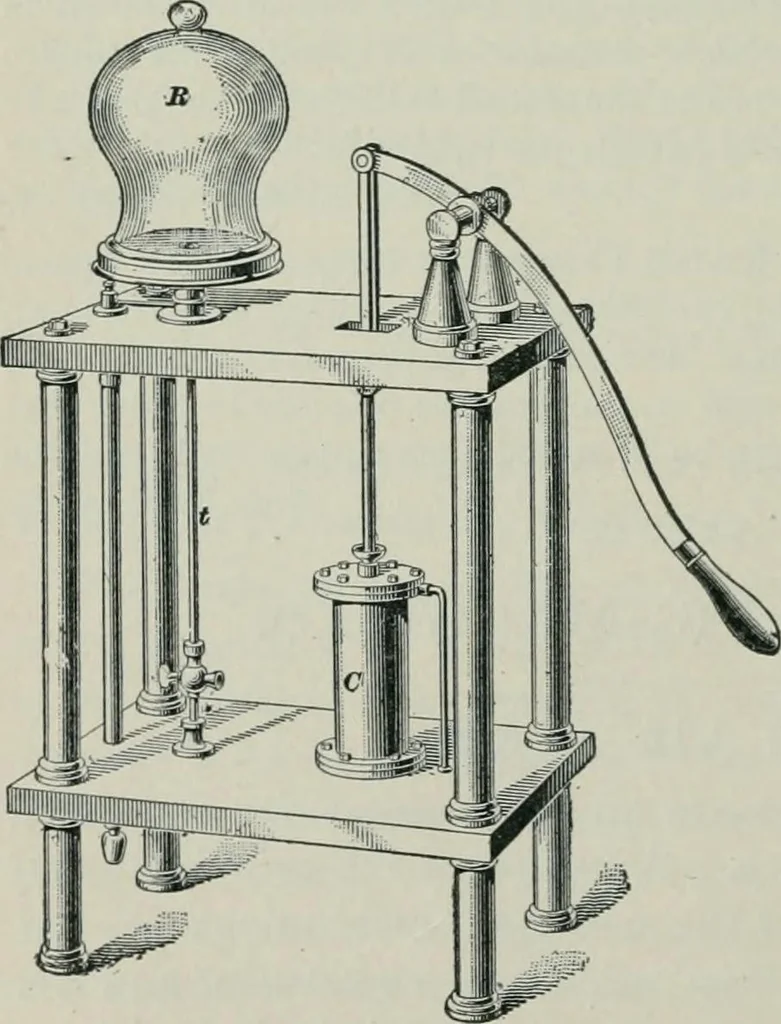

cylinder C by means of a benttube /. The pump pis-ton fits the cylinder ac-curately, and has a valveV opening upwards.At the junction of thetube with the cylinderis another valve Falsoopening upwards. Whenthe piston is raised thevalve V closes, and,since no air can get intothe cylinder from… … PNEUMATICS. 423 space displaced by the piston, the space in the tube / and inthe receiver 7?. The piston is now pushed down, the valve Vcloses, the valve l^ opens, and the air in C escapes. Thelower valve Vis sometimes supported, as shown in Fig. 192,by a metal rod passing through the piston and…
