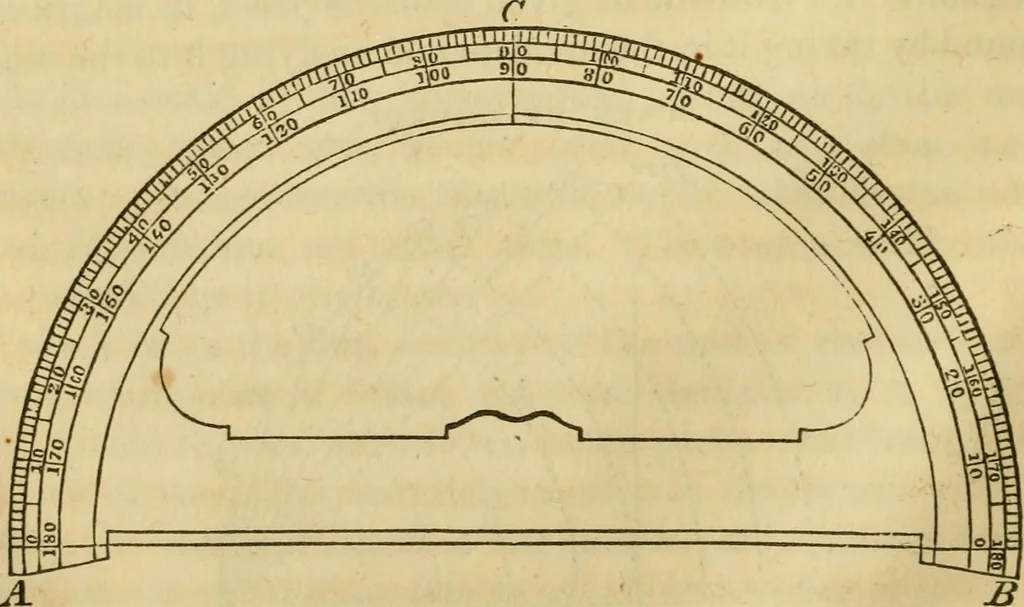

of a line, with the scale of chords,an angle equal to a given angle. Let AB be the line, and Jl the givenpoint. Take from the scale the chord of 6 0 de- ^^ grees, and with this radius and the point ^^^2_^ \ .^ as a centre, describe the arc BC. Then -^ ^ take from the scale the chord of the given… … 24. This instrument is used to lay down, or protract angles.It may also be used to measure angles included between linesalready drawn upon paper. DESCRIPTION OF INSTRUMENTS. 27 It consists of a brass semicircle ABC divided to half de-grees. The degrees are numbered from 0 to 180, both ways ;that…
