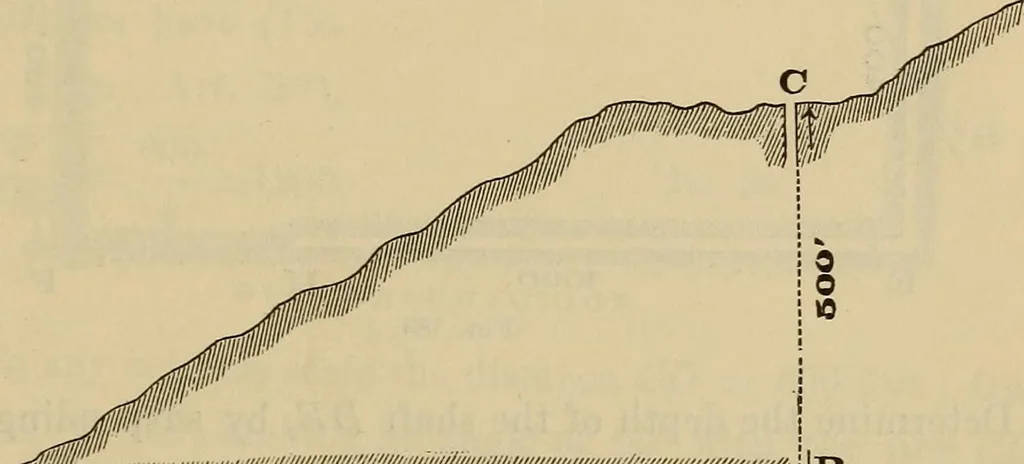

preceding one, to coincidewith it, and so on till all are brought into coincidence withthe fixed one. The lines of the traverse will then be situatedin one plane, and a plot of them, in this position, will be theprofile required. The distances from the traverse to the floorand roof of the tunnel,… … Fig. 188. If the course of the tunnel is not a straight line it must betraversed. Assuming it to be a straight line, the bearing isobtained with the transit. The length of the tunnel is thenaccurately measured with a steel tape or a rod. The surveyorDOW stakes out the course on the surface, then…
