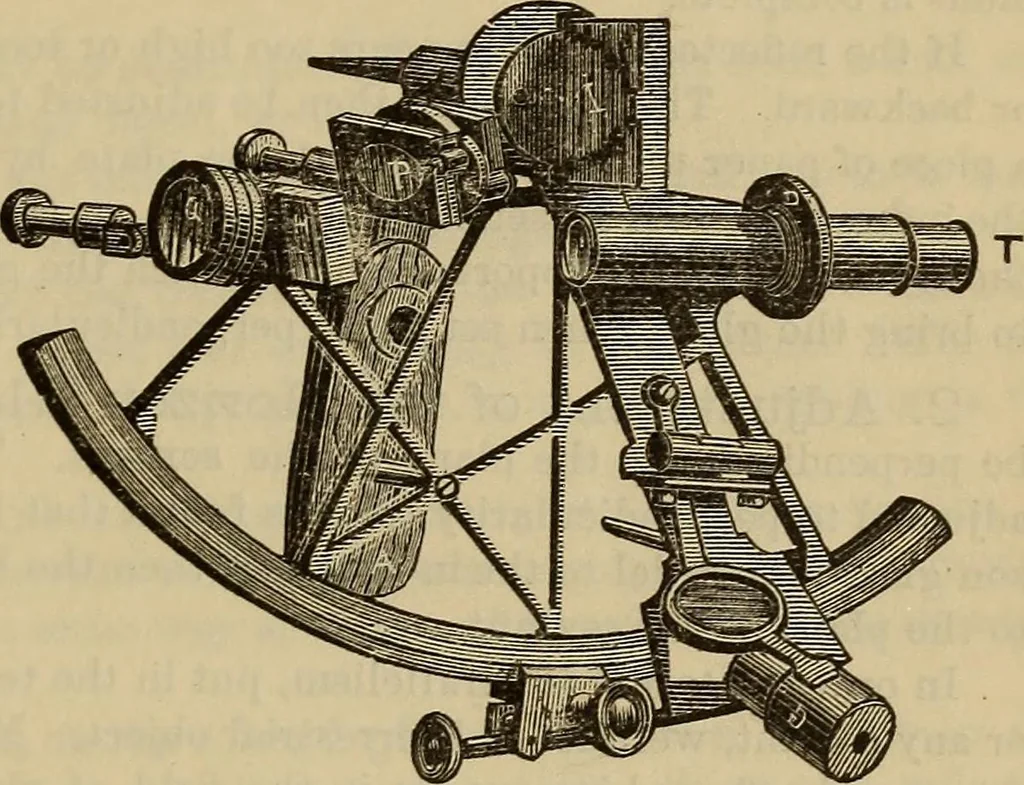

ightness of the direct and reflected images.The vernier is read with the aid of a glass G which is attached to the indexbar. The central mirror 1, or index glass, is fastened in a brass frame whichis firmly attached to the index bar by three screws. This glass is generallyset by the maker so as to… … Fig. 5. 18 ELEMENTS OF SURVEYING. [APP. B. altitudes), is specially provided with screws bv which its position with respectto the sextant plane may be rectified. At P and Q are colored glasses of different shades, which may be usedseparately or in combination, to defend the eye from the intense…
Surveying
