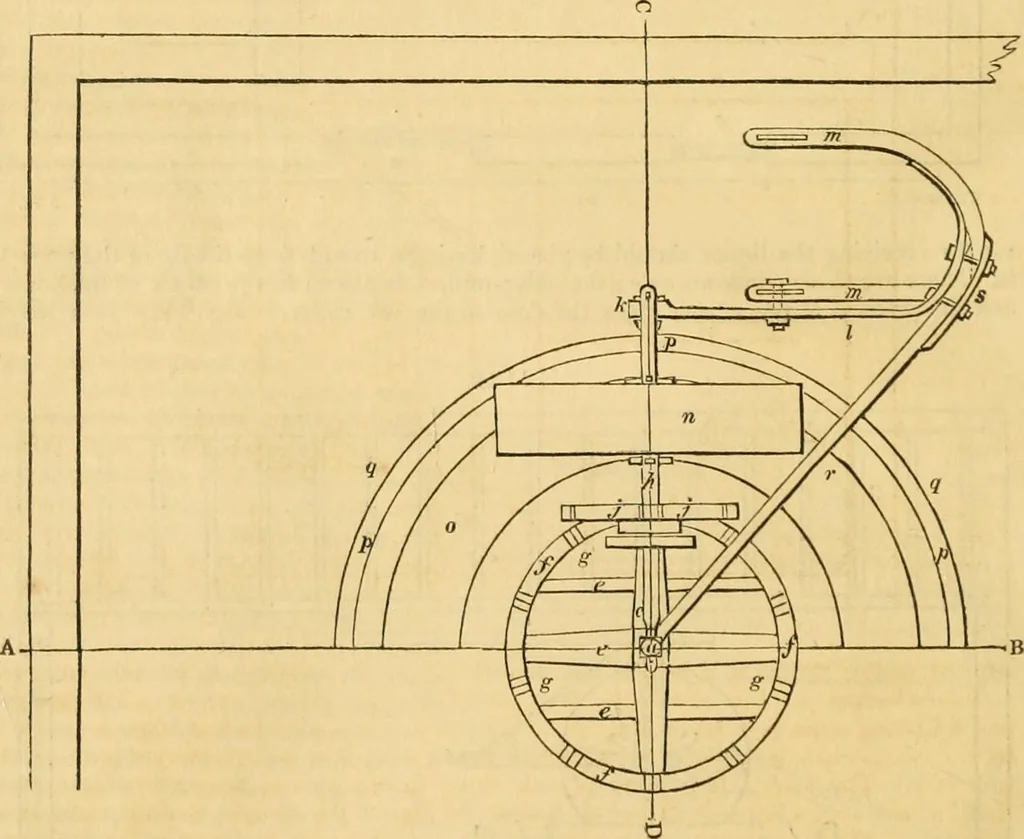

An illustration from An encyclopædia of cottage, farm, and villa architecture and furniture : containing numerous designs for dwellings from the cottage to the villa including farm houses, farmeries, and other agricultural buildings, several designs for country inns, public houses, and parochial schools, with the requisite fittings-up fixtures and furniture ; and appropriate offices, gardens and garden scenery ; each design accompanied by analytical and critical marks illustrative of the principles of archtiectural science and taste on whihc it is composed, 1836, leaf 633 — A B, fig. 1174, and on the line C D, fig. 1175. In each of these figures, the sameletters represent the same parts : a represents an upright shaft or spindle four inches and 1173 … a half in diameter, with an iron band and gudgeon on each end ; the top one working onan iron plate with a hinge joint and staple to release the spindle. The bottom gudgeonis shouldered, to prevent it going too far up the shaft, and it works in a cast-iron cap, b ;fixed to tlie cross-piece or arm,…
