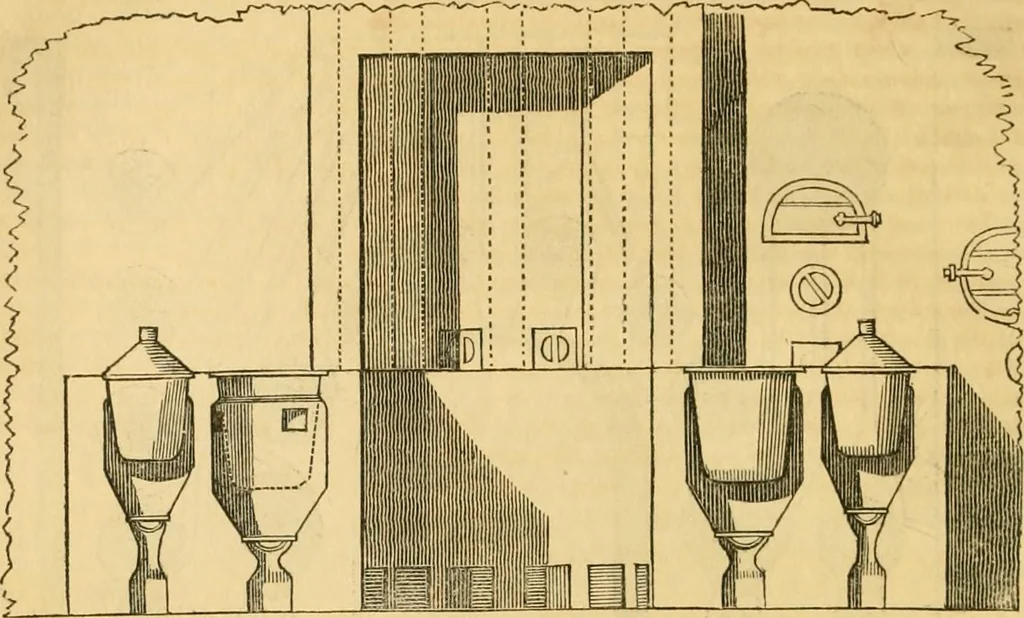

An illustration from An encyclopædia of cottage, farm, and villa architecture and furniture : containing numerous designs for dwellings from the cottage to the villa including farm houses, farmeries, and other agricultural buildings, several designs for country inns, public houses, and parochial schools, with the requisite fittings-up fixtures and furniture ; and appropriate offices, gardens and garden scenery ; each design accompanied by analytical and critical marks illustrative of the principles of archtiectural science and taste on whihc it is composed, 1836, leaf 737 — for the cook to come to the open chimney fireplace, or rather tothe stoves that are situated near it. Fig. 1357 represents a vertical section of the mass of brickwork through thecentres of the fireplaces of the four principal boilers ; and is chiefly designed to show theconstruction of those… … also sections of the ash-pits, and of the contractions of the fireplaces immediately belowthe orates; and in one of the fireplaces, which is shown without its boiler, the openingsof the branched flue by which the smoke goes off horizontally towards the chimney arealso marked. Fig. 1358 shows a…
