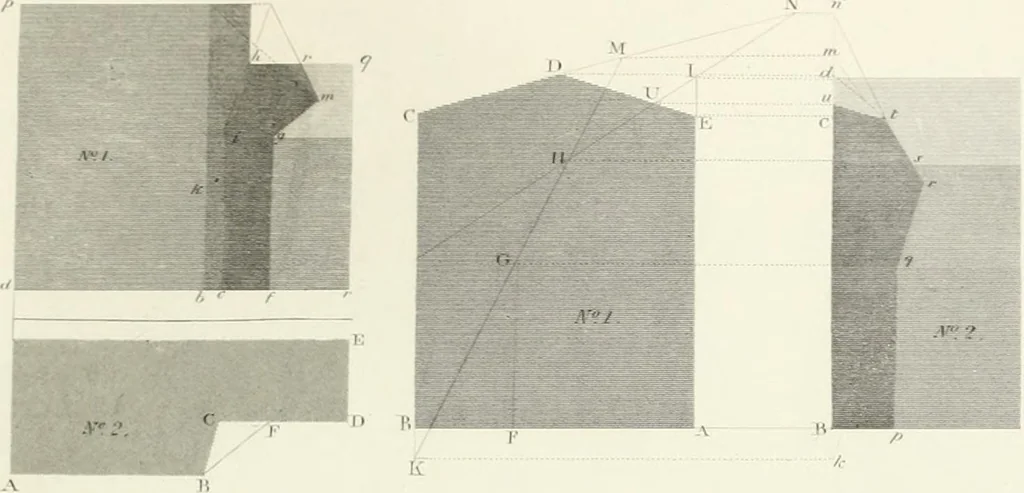

An illustration from Encyclopedia of architecture : a dictionary of the science and practice of architecture, building, carpentry, etc., from the earliest ages to the present time, forming a comprehensive work of reference for the use of architects, builders, carpenters, masons, engineers, students, professional men, and amateurs, 1852, leaf 513
ding point of k ; through k and p draw theindefinite shadow kp q ; c being the corresponding point of c,draw the elevation, c r/, of a ray : find ?, the correspondingpoint of I ; and join i q, which completes the shadow onboth planes. Pkoblem XXX.—A cylinder being capped with a squareabacus,…
