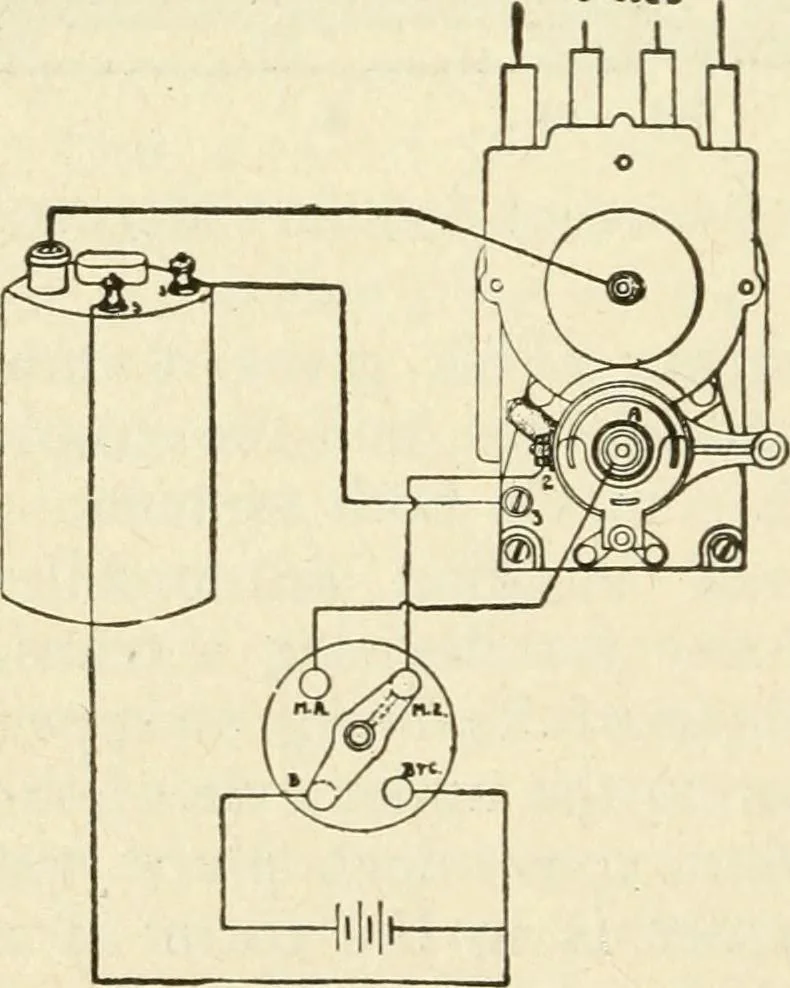

Fig. 2. Wiring Diagram of SplitdorfMagneto and Dash Transformer. Fig. 4.Tube Transformer. It is waterproof and oil proof, and is an efHcientpiece of ignition apparatus. In Fig. 3 is shown a.separate wiring diagram for this apparatus, andUit is possible to use the device in connection withany model…
