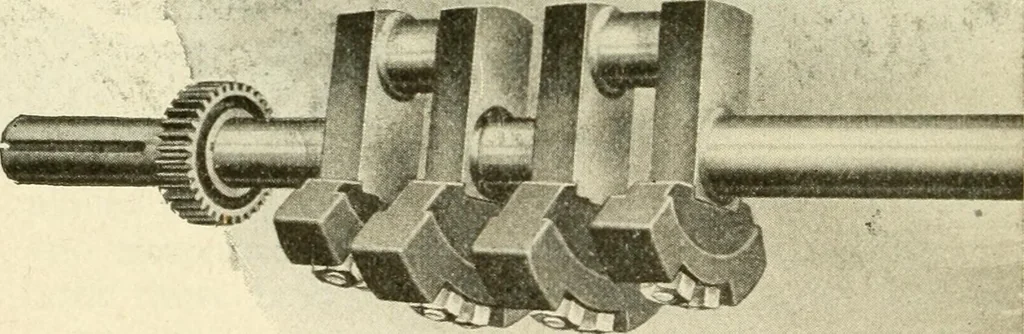

4> in. Exhaust valve port diameter, 3-3^ in. Con. Rod, C. to C, 2^ in.; stroke, 30 in. Cam shaft diameter, 1 13-16 in. Crank shaft, wrist and journal diameters: Wrist, 4J^ in.; journals, 4 7-16 in.Cylinders, large bore, 10 in.; piston stroke, 12 in.Intake valve port diameter, 3^^ in.Exhaust… … •1 Fig, 3. Crankshaft of Secor Two-Cylinder Motor. Thegray iron counterbalance weights are bolted on as shown. The Burning Question. 225 The piston pins are all 2^ in. diameter, are allsolid, case hardened and ground, are fixed in thepistons and turn in the rod ends length of rodand pin bearing 5^…
