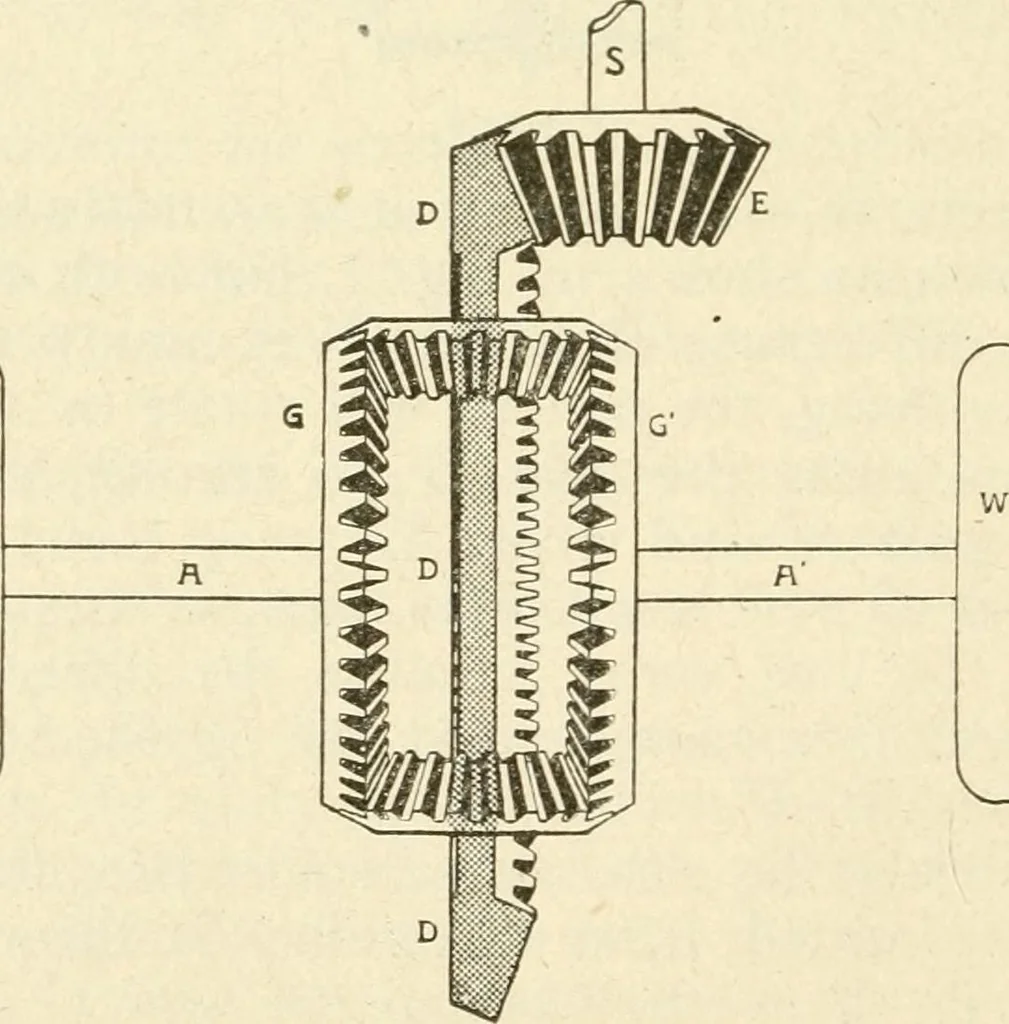

Figure 2. tvveen the centers of the pinions and the teeth ofboth gears are ahvays equal. In the simplest language possible, when gear Gremains stationary, gear G and the pinions rollaround, as it were, on gear G, the teeth of thepinions pressing forward on the teeth of gears Gand G with equal… … v_y Figure 3. The Care of Axles, 85 as actually used in the rear axle. In place ofpulley B in Figs. 1 and 2, we have the driving g.arD, and instead of two pinions there are now four,but the action is the same as that described for theapparatus in Fig. 2. The driving gear D receives the power from…
