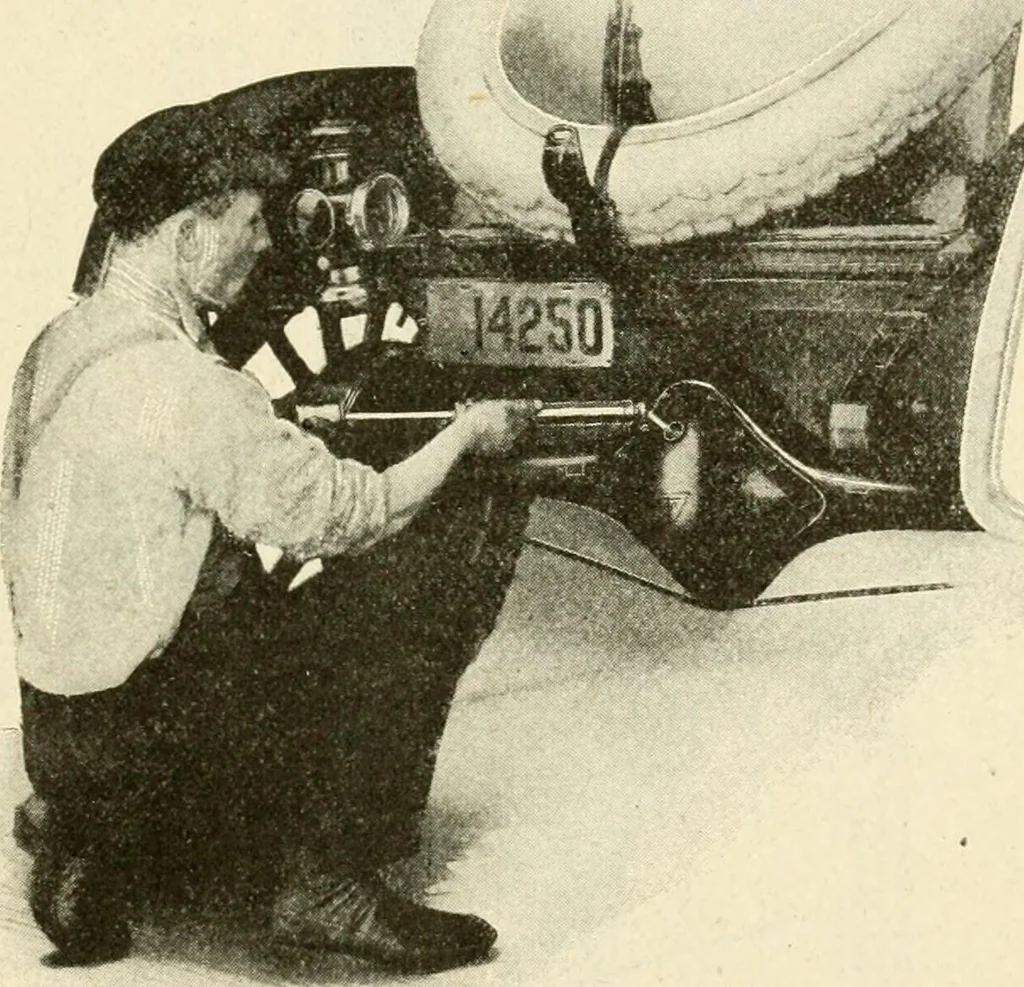

v_y Figure 3. The Care of Axles, 85 as actually used in the rear axle. In place ofpulley B in Figs. 1 and 2, we have the driving g.arD, and instead of two pinions there are now four,but the action is the same as that described for theapparatus in Fig. 2. The driving gear D receives the power from… … Pouring oil into the dififerential housing. latter being at the rear end of a pinion-shaftcoupled with the main propeller shaft which trans-mits the power from the engine. Lubrication.Grease-cups are provided at every moving sur-face. They are shown on the diagrams and arereadily found on the axles…
