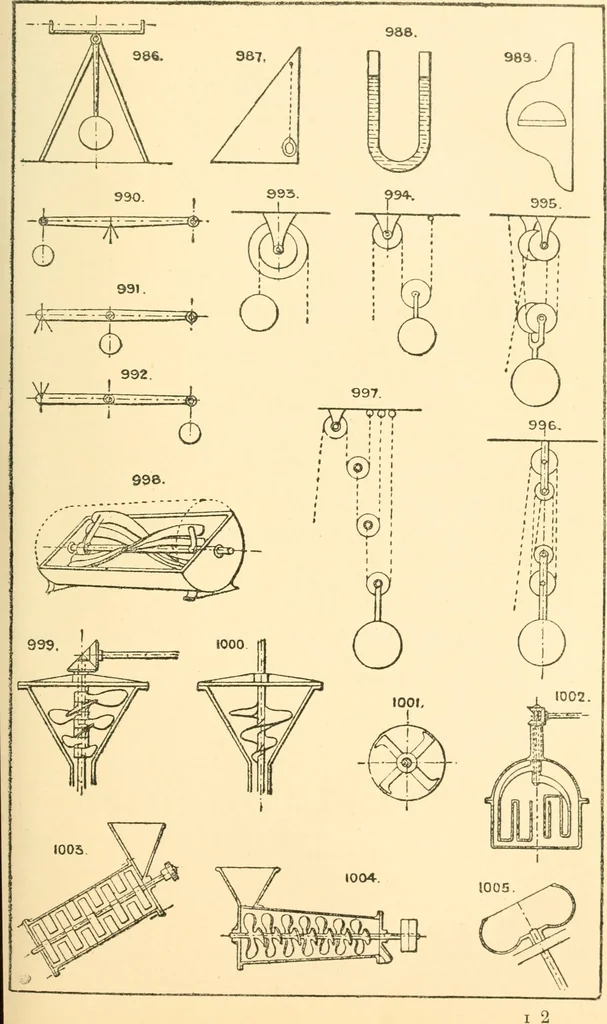

Pan mixer. A cylindrical case or pan with a set of arms revolving with the central shaft. 1002. Egg beater or mixing machine. Two sets of open radial frames revolve in opposite directions, the frames being shaped topass through each other, and are driven by mitre gear driving ashaft and sleeve.… … 124 THE ENGINEERS SKETCH-BOOK. 1006. Mixer, with two pairs of arms running in opposite directions. See Cross section. 1007. A modification of the last; the centres of the arms being above one another so that the arms pass each other in revolving. 1008. Horizontal table mixing machine. The stuff…
