The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 23

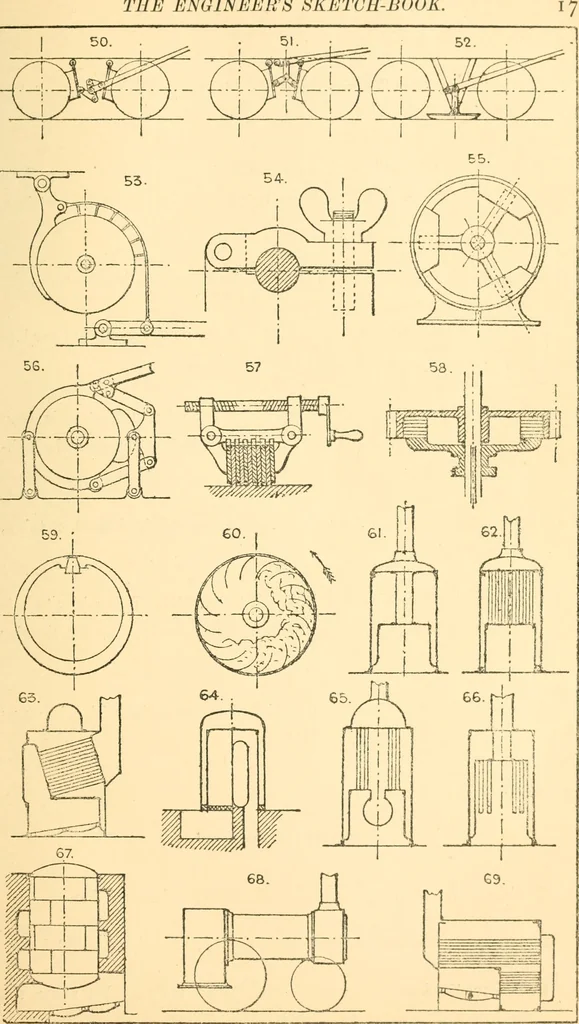

re flue boiler. Sometimes the centre flue is sur- rounded with tubes, as No. 65. 62. Vertical multitubular. 63. Vertical boiler, with diagonal tubes and smoke boxes. 64. Vertical return-flue. 65. Pot boiler. 66. Field boiler; with suspended tubes and internal cii-culating tubes. 67. Vertical… … ><^<, .1 Ui THE ENGINEERS SKETCH-BOOK. 70. Fixed loco-type multitubular; a favorite and useful form, giving good results, and easily cleaned. 71. Fixed loco-type, with underneath fire-box; sometimes used to economise space, is self-contained, and usually stands on cast-ironfeet. 72.…
Mechanical movements
