The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 253

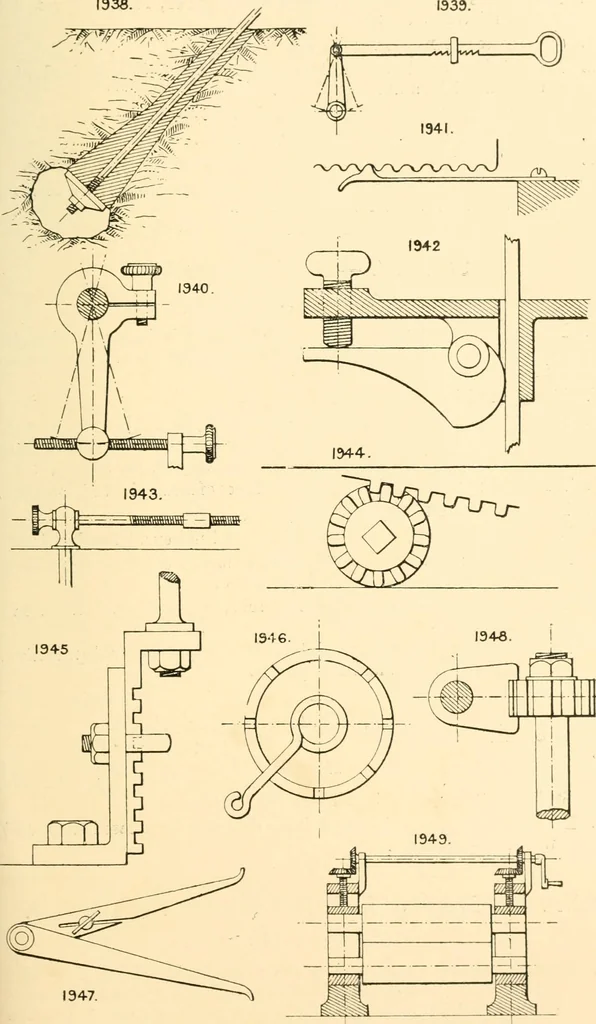

ecured by a staple bolt. 1946. Adjustment for a spiral torsion spring to regulate its tension. 1947. Callipers with fine adjustment by a taper screw, tapped into a hole in the split leg, so that the taper screw springs open theslit and thus extends the opening of the calliper legs. 1918. Adjusting… … 248 THE ENGINEERS SKLICH-BOOK. 1950. Adjustment for expanding a split borer, reamer or rose bit, with micrometer graduation. 1951. Screw adjustment for a lever. Iy52. Adjustable centre pin, traversed by a screw, and fixed afteradjustment by a nut ai^d waslier. 1953. Fine screw adjustment for any…
Mechanical movements
