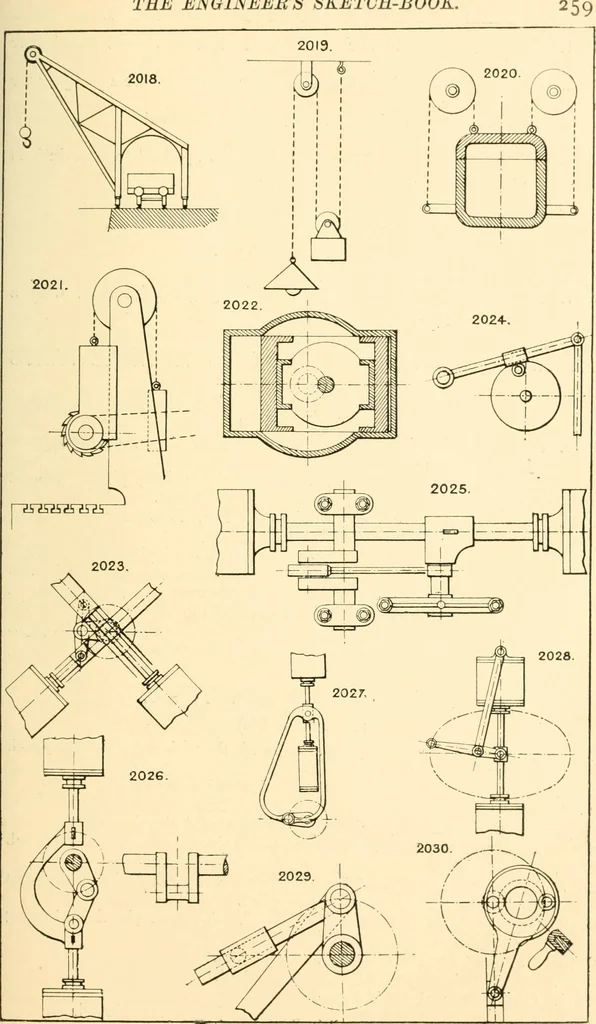

2025. Crank motion (in plan), with side connecting rod an 1 off guide. TLe crank shaft crosses the piston rod as near as may be. 2026. Crank motion, with semi-yoke crosshead, 2027. Ditto with yoke connecting rod. 2028. Ditto for a pump, the handle describes an elliptic path. 2029. Bouchets crank… … 26o TEE ENGINEERS SKETCH BOOK. 2031. Crank motion to work a sliding tool or movement on a bar or ^uicle. 2032. Offset crosshead and guide crank motion for a pump or air compressor. 2033. Crank motion to drive a swing arm, or vice versa, 2034. Side crank motion. 2035. Atkinsons crank motion to drive…
