The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 283

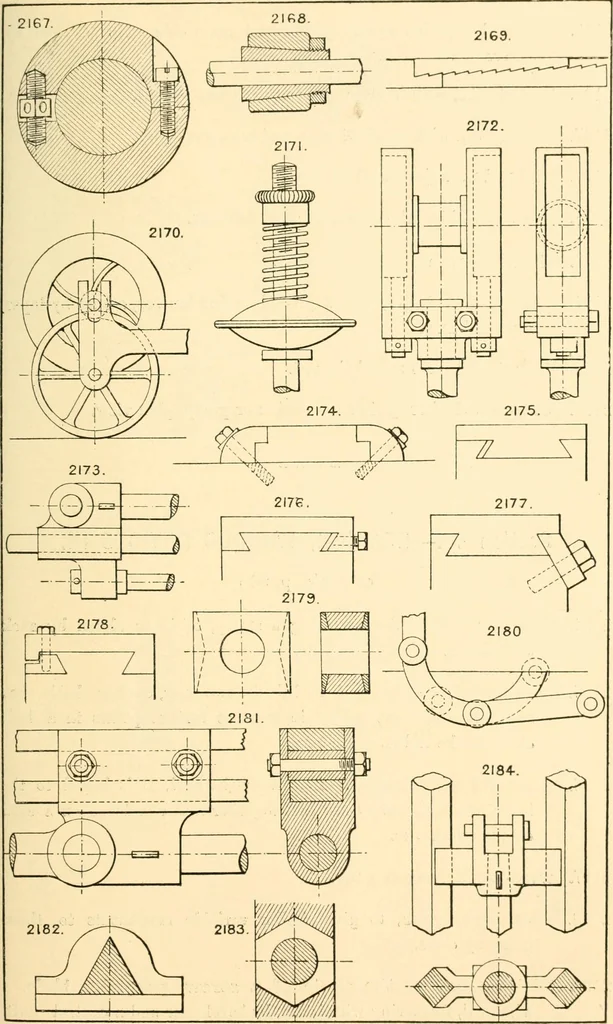

t. 2177. Ditto, ditto, with bevelled adjusting strip and set screws. 2178. Ditto, ditto, with loose V strip set up by screws on top. 2179. Guide block for engine crosshead formed of a bronze shell filled with white metal or antifriction metal. 2180. Curved segment guide for a link movement to turn… … 278 THE ENGlJSEEliS StiETCH-BOOK. 2185. Guide bed, with square guides and renewable strip adjusted by set screws. 2186. Vee guide, with V strij) anl set screw adjustment. 2187. Ditto, do., with bevelled strip and set screw, 2188. Ditto, do., adjusted at the top. 2189. Simple guide attachment to a…
