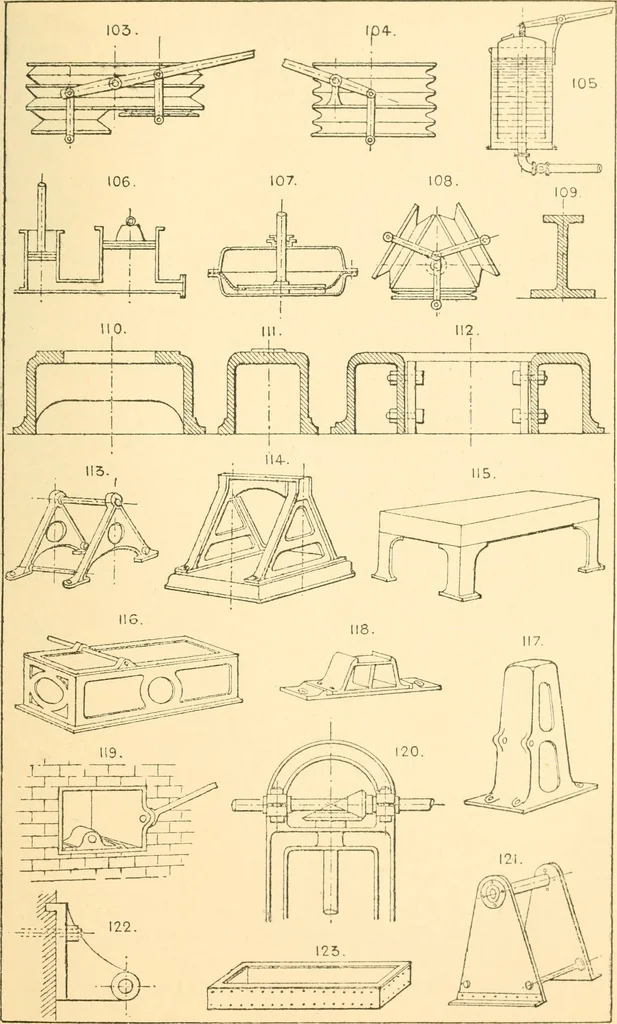

ndard for hammers, vertical engines, and any machine raised above the floor. 118. Scleplate and standard for pedestal bracket, &c. Admits of being detached without disturbing the foundation. 119. Wall box for shaft bearings, &c. 120. Arched crosshead for double bearing, bevil gear, &c.… … 24 TEE ENGINEERS SKETCE-BOOK. 124. Base plate for column, &c., with concrete foundation. The bolts are usually T headed (see No. 1404), in open recesses, so as to beeasily removed without disturbing the base plate. 125. Dovetail and key fixing for brackets, bearings, or any separate detail of…
