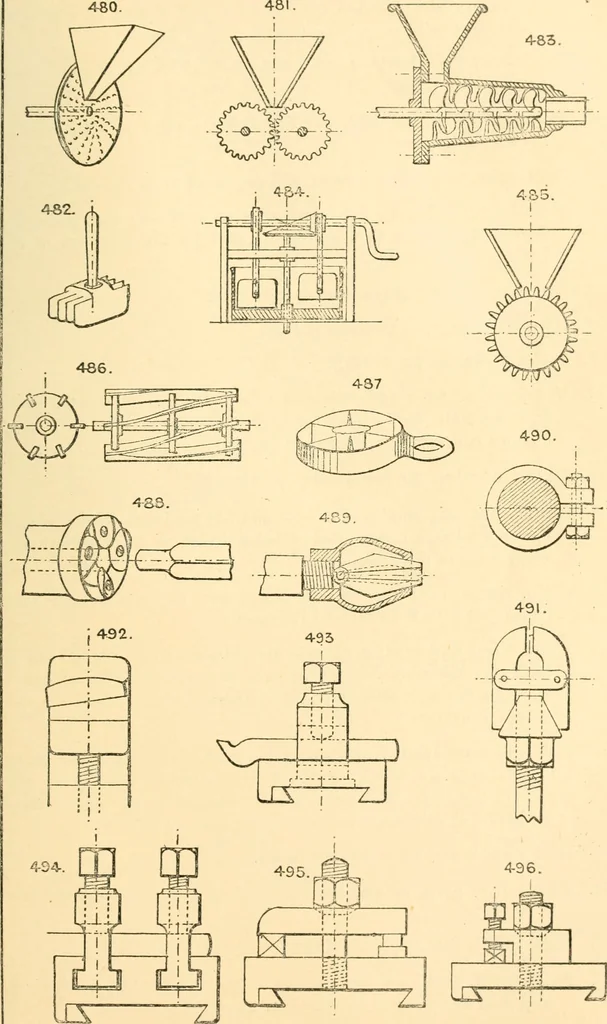

s grip vice, &c. 488. Hollow chuck, with radial knives, for rounding wood rods. See also No. 458. 489. Barbers patent grip for shanks of drills, brace bits, &c., having square taper shanks. 490. Collar grip and bolt, or set screw. 491. Cone and screw lever grip, with two or more jaws ; with… … 70 THE ENGINEERS SKETCH-BOOK. 494. Tool box, with two tool stocks and set screws sliding in T grooves in the slide rest. 495. Tool box, with clamping screw and plate, which can be revolved to any angle. 496. A modification of 495, the tool being secured by set screws in the clamping plate 497. Rail…
