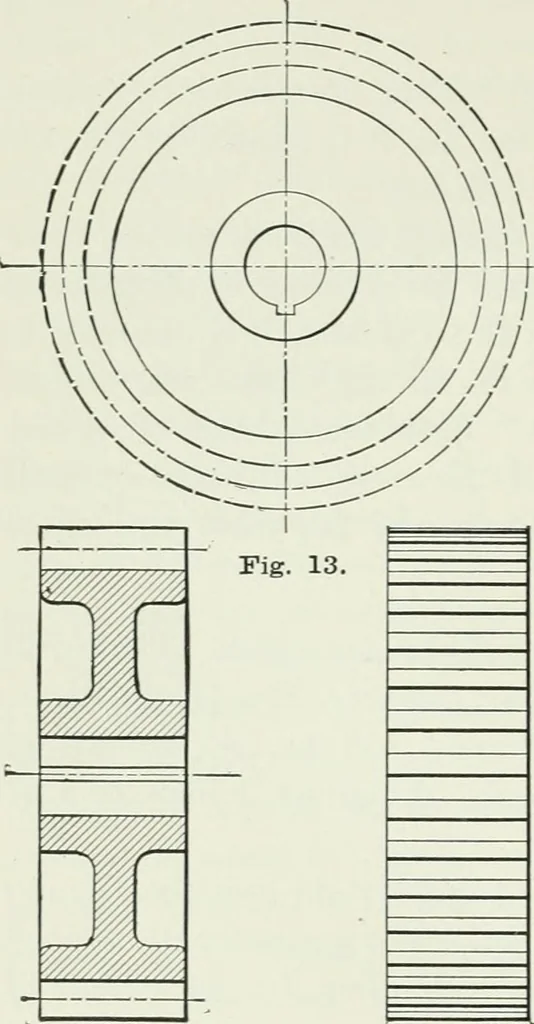

)itch line l)einga right line, the circularpitch may be laid off directly by scale, or spaced from the pinion. The approximate methodmay be used for the tooth curves, and lines drawn parallel to the pitch line, for the centers ofthe arcs which approximate the addenda and dedenda of the teeth. 24… … y/w, P m m m ^////., mmm ^ ^ ,_> I, Fig. 14. Fig. 15. 35. Face of Gear. In the previous consideration ofgear teetli no attention has been paid to the width of thegear, or, as it is commonly termed, the face of the gear.This dimension is one of the factors to be considered indetermining the…
