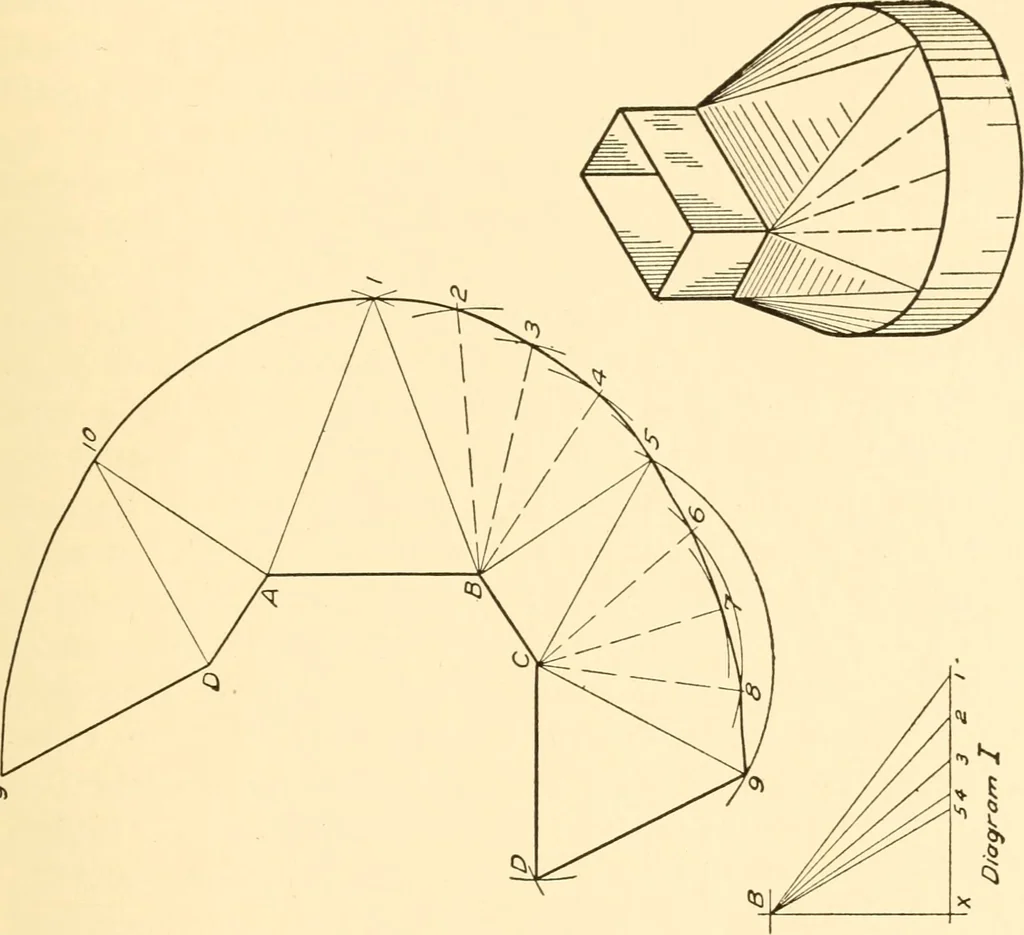

be constructed in their true size by drawing anarc, with Oi as a center and 0^1^ as a radius. Starting at li,space off the chords lr-2i, 2i-3i, etc., equal to 1^-2^, 2^-3^, etc.Draw lines Oi U, 0\ 2i, etc., representing edges of the pyramid.Construct the development of the base so that it may be…
