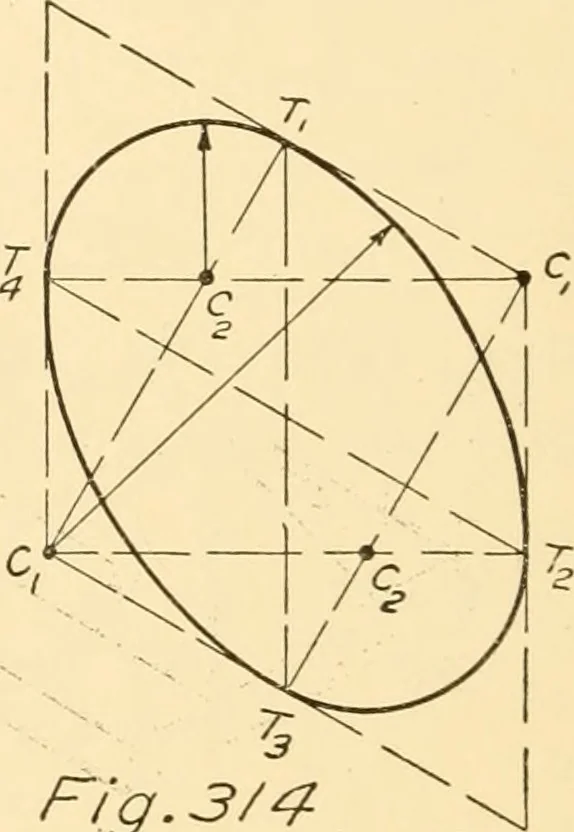

Fig. 3/^ as indicated in the figure. Join F and E. Line FE is a non-isometric line. In Fig. 310 point E is located as before. Point T is locatedby measuring along BC to point iS and then parallel to line BT).It is often convenient to think of the object as being placed in abox. This box can be put…
