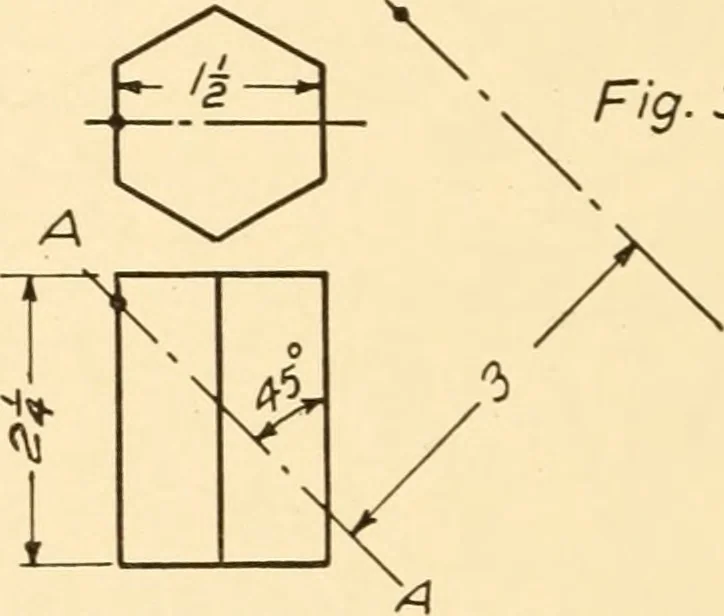

aw three views of the rectangularprism after it has been revolved from the position of Fig. 371about a vertical axis. Top view is shown in Fig. 372. 89. Space b^/2 X 1. Draw three views and a completeauxiliary view of the square prism shown in Fig. 373, after it hasbeen cut by plane A-A and the…
