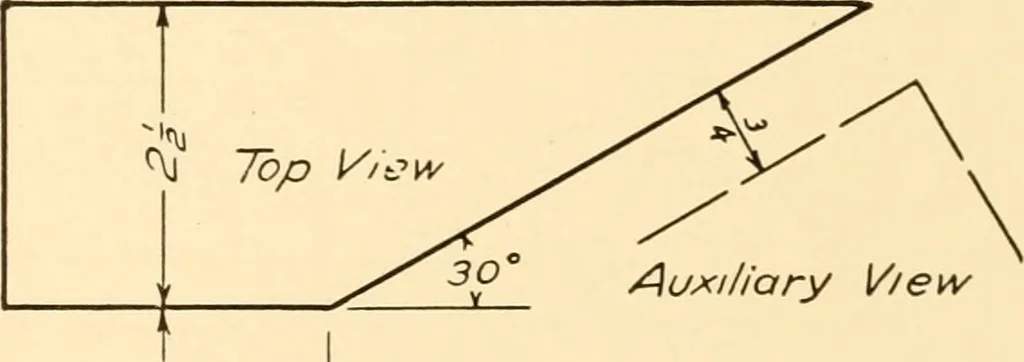

^f Auxiliary View Complete FrontVi3\iV Here Fig. 38 O 101. Space 5V2 X 1. Draw a sectional view of Fig. 383 ona plane through the axis. 102. Space 5V2 X 1. Draw three views of Fig. 384, chang-ing the proper view to a section on plane A-A. 103. Space 5V2 X 1, Draw three views of Fig. 385, chang-ing…
