Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 46

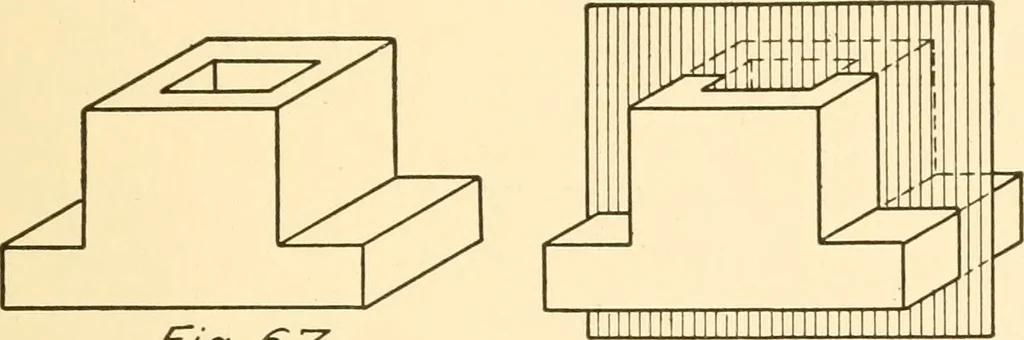

s detail is inclined, a side view andauxiliary view are used. In this way true shapes are shown.Other views are not needed. They would be somewhat difficultto draw and would not add anything to what is already shown.Very good practice is to be had by deciding the number of views PROJECTIONS 29 and… … ^fg. 67 Fig. 6Q
Mechanical drawing
