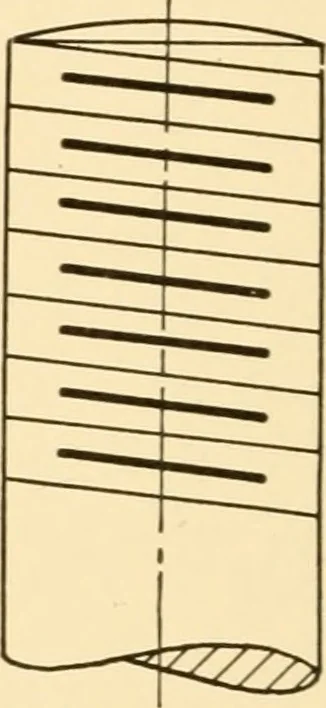

Fig. 96 F/g. 99 … F/g. 100 thread. Similarly, a triple or quadruple thread may be formed.In this manner a large lead may be obtained without lesseningthe strength of the screw. Split Nut and Square Thread. — A portion of a square threadedscrew, and a section of a nut for use with it are shown in Fig. 92.
