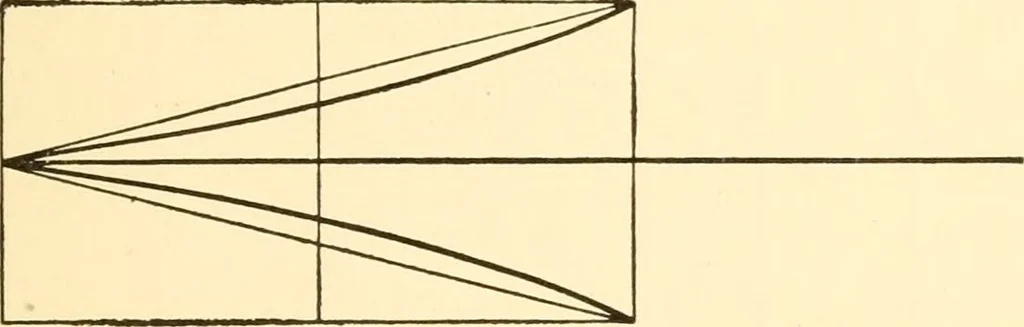

g. 182 where the ribs are sectioned but alternatelines are omitted. A note giving the number and thickness ofthe ribs would allow the end view to be dispensed with. Observethat the half end view is bounded by the center line and not bya full line, as the pulley has not been actually cut in half.…
