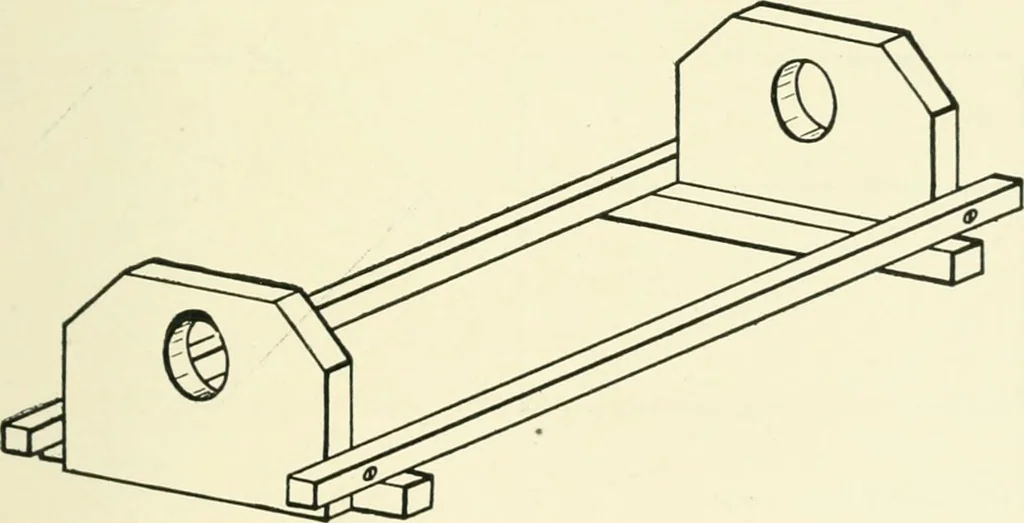

ption: The upright ends are 1 inch thick, 10 inches wide, and 8 incheshigh, with upper corners beveled 2 inches in each direction; the hole, 2^inches in diameter, is centered with its upper edge 1 inch below the upperedge of the end piece. The distance in the clear between the innersurfaces of the… … Make an isometric drawing of a right prism; its axis is vertical and 2 incheslong; its upper and lower bases are equilateral triangles whose sides are3 inches long. A cyHndrical hole 1^ inches in diameter extends throughthe prism from top to bottom; the axis of the hole coincides withthe axis of…
