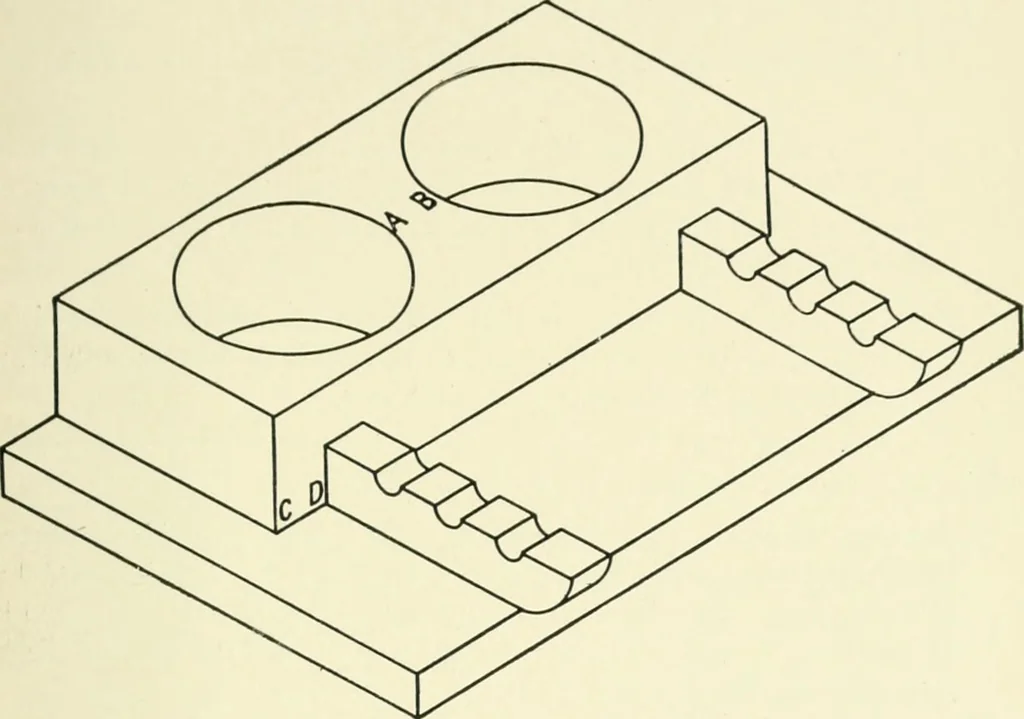

88 J Page 1 DRAWING—MECHANICAL Saturday, June 21 1919 9 a.m. Two hours Candidates taking the examination in Mechanical Drawing are requested to writetheir neunes in addition to their examination numbers on the answer book and sheets ofdrawing paper used in the examination. … 1. Make a working drawing of the ink-bottle holder. Include (a) Three views drawn to a scale of one-half size. (b) The necessary dimensions. (c) A brief title, giving name of object, scale, date, and name. (d) Complete notes describing materials, fastenings, finish, etc. Data:Base: of |-inch stock,…
