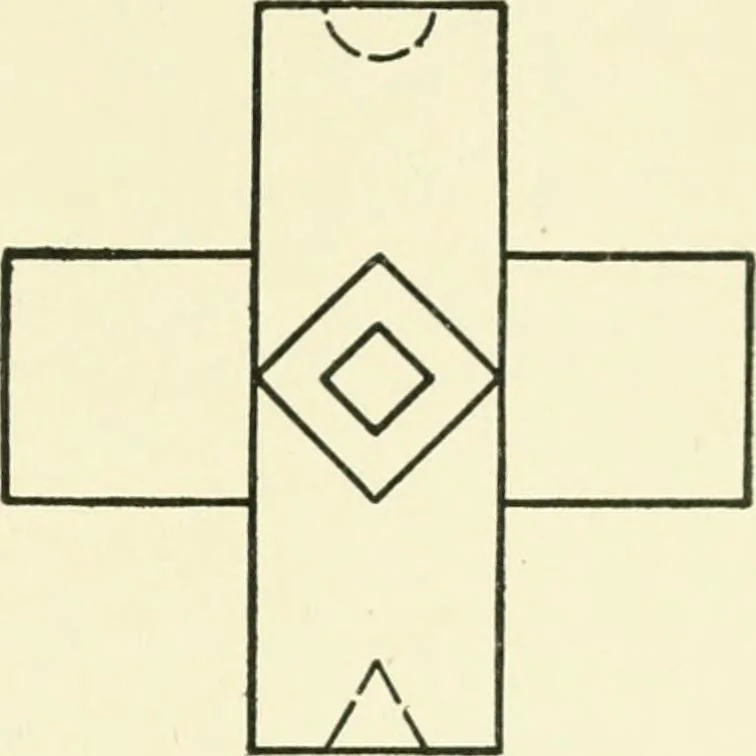

The front and end views are given. Copy these and draw the top view. 90 (THIS EXAMINATION IS CONTINUED ON PAGE 3) Page 3 6. r:\~ .±y^. \y /— \ A … The object represented above is composed of several blocks. (a) Give the length of each block and the shape of its cross-section. (b) What is represented, by the dashed lines at the top, and what at the bottom of the vertical block ? 91 Page 1 DRAWING—MECHANICAL Saturday, June 26 1920 9 a.m. Two…
