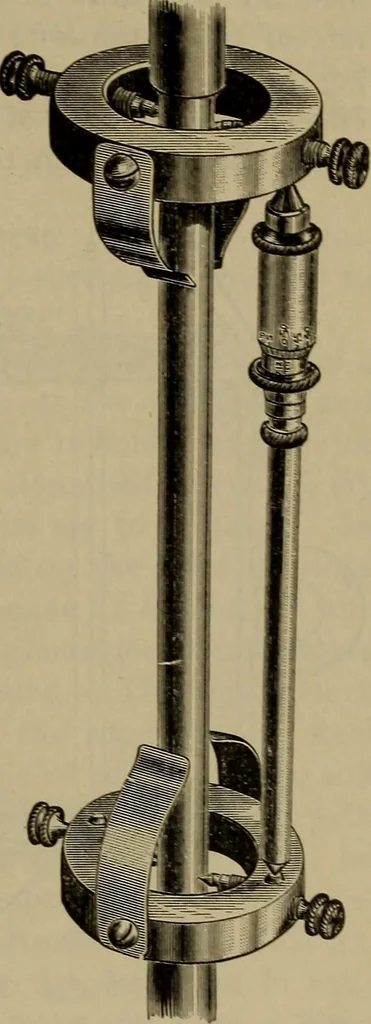

th bell andbattery at ;;/, ;/, and ;;/, ;/, so that contact of the micrometer-screws is indicated by sound. The construction of the clamp-ing device is fully shown in the plan view, Fig. 55. The principal peculiarity of this extensometer consists in theaddition of four pulleys, C^, C^, C^ and C^,… … Fig. 53. 114 EXPERIMENTAL ENGINEERING. [§S6. drum. It is at once evident that any extension of the speci-men SS will draw in the free end of the cord at twice therate of the extension ; moreover, any slight swinging or rock-ing of the extensometer head will produce compensatingeffects on the length…
