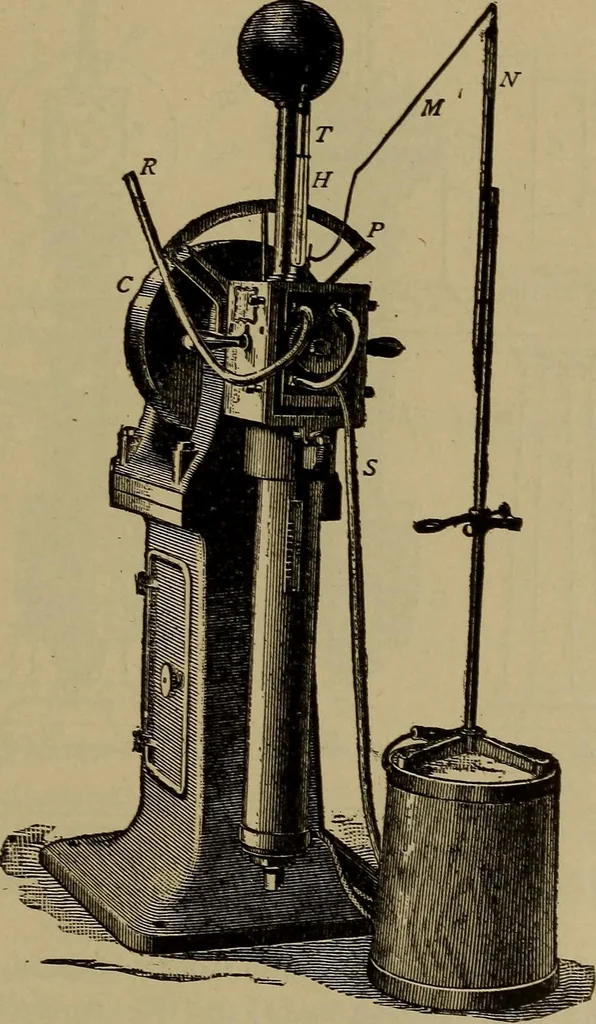

ch bears against the under journal-bearing, a\ Into the lower end of the pipe y a piece, cc, isscrewed, which has a hole drilled in the centre, through which § 1530 FRICTION—TESTING OF LUBRICANTS. 191 a rod, /, passes, the upper end of which is screwed into a cap,d\ between this cap and the piece… … Fig, 80.—Thurstons Railroad-Lubricant Testing-machine. against a nut, 0, screwed on the pipe. By turning the nut 0the stress on the journal produced by screwing the rod/canbe thrown on the key /, and the bearing relieved of pressure,without changing the tension on the spring. A counterbalanceabove…
