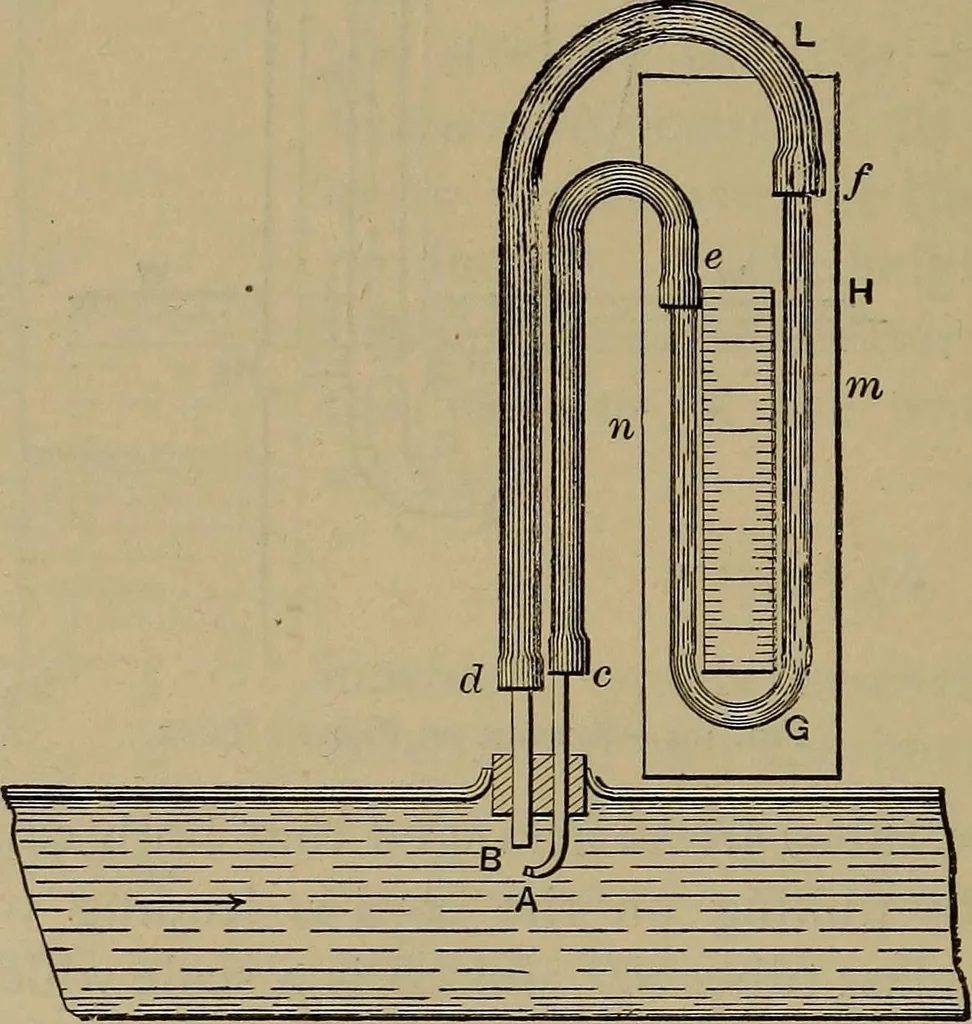

of level, so that thereadings can be taken in a more convenient position ; or by clos-ing the cock K, by pulling on the strings ss, the instrumentmay be withdrawn, and the readings made at any convenientplace. 223. Pitots Tube for High Pressures.—A modifiedform, as shown in Fig. 104, of Pitots tube… … Fig. 104.—Sketch of Pitots Tube for Great Pressures. of the liquid in the branches of the U-shaped tube eGH, thisdifference is due entirely to the velocity, since both branchesare under equal pressure. Thus, if the liquid stand at m onone side and at n on the other, the velocity is that due to…
