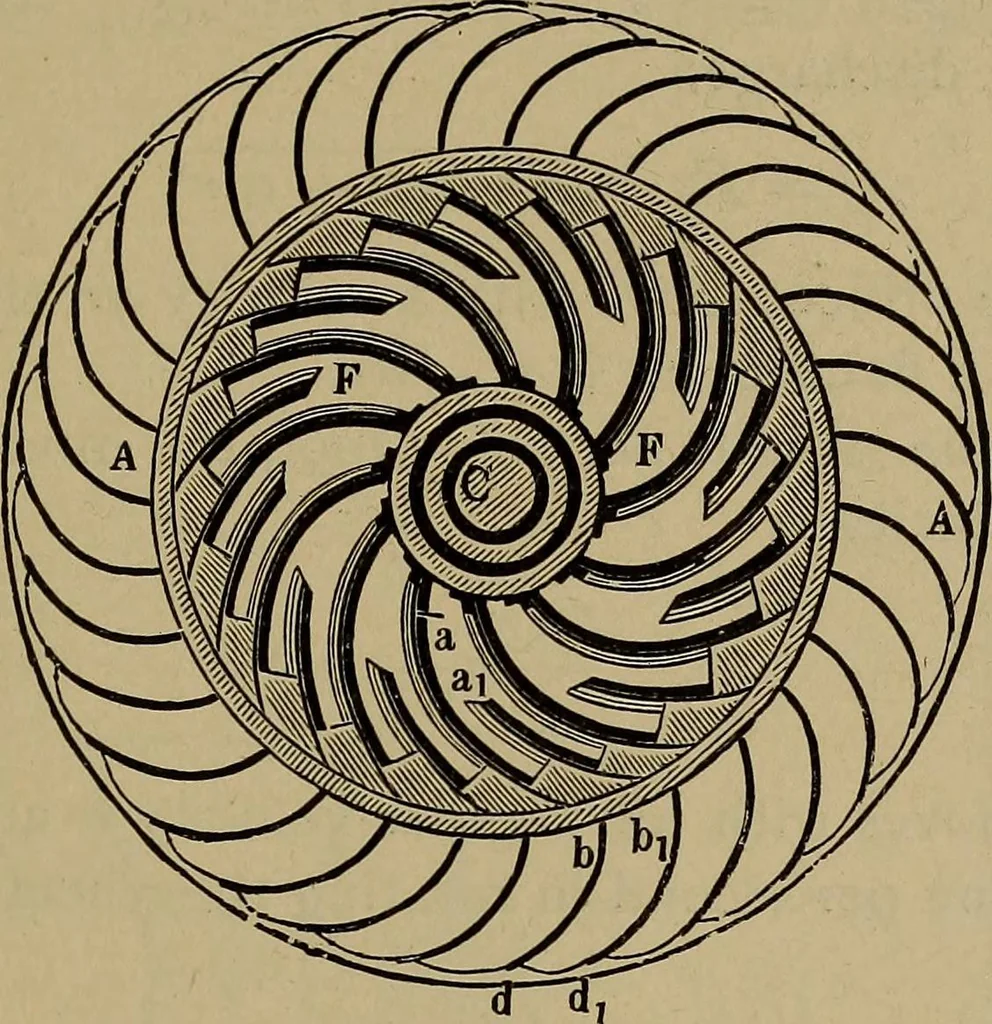

pported by these^-ubes is a fixed cylinder, with a bottom but no top, contain-ing the curved guides F F. The wheel AA is supplied withcurved buckets bd^ b^d^, so arranged as to absorb most of theenergy of the water; the water enters the wheel at t^a^ inneredges of the buckets and is discharged at… … Fig. 114.—Outward-flow Turbine. 248. Reaction-wheels.—The simple reaction-wheel isshown in Fig. 115, from which it is seen to consist of a verticalcylinder, CB^ which receives the water, and two cylindric arms,G and F\ on opposite sides of eacharm is a circular orifice through whichthe water is…
